Lumin

U2X

Streamer
Sale price$13,000.00 CAD

Tax excluded.

Color: Silver

Color

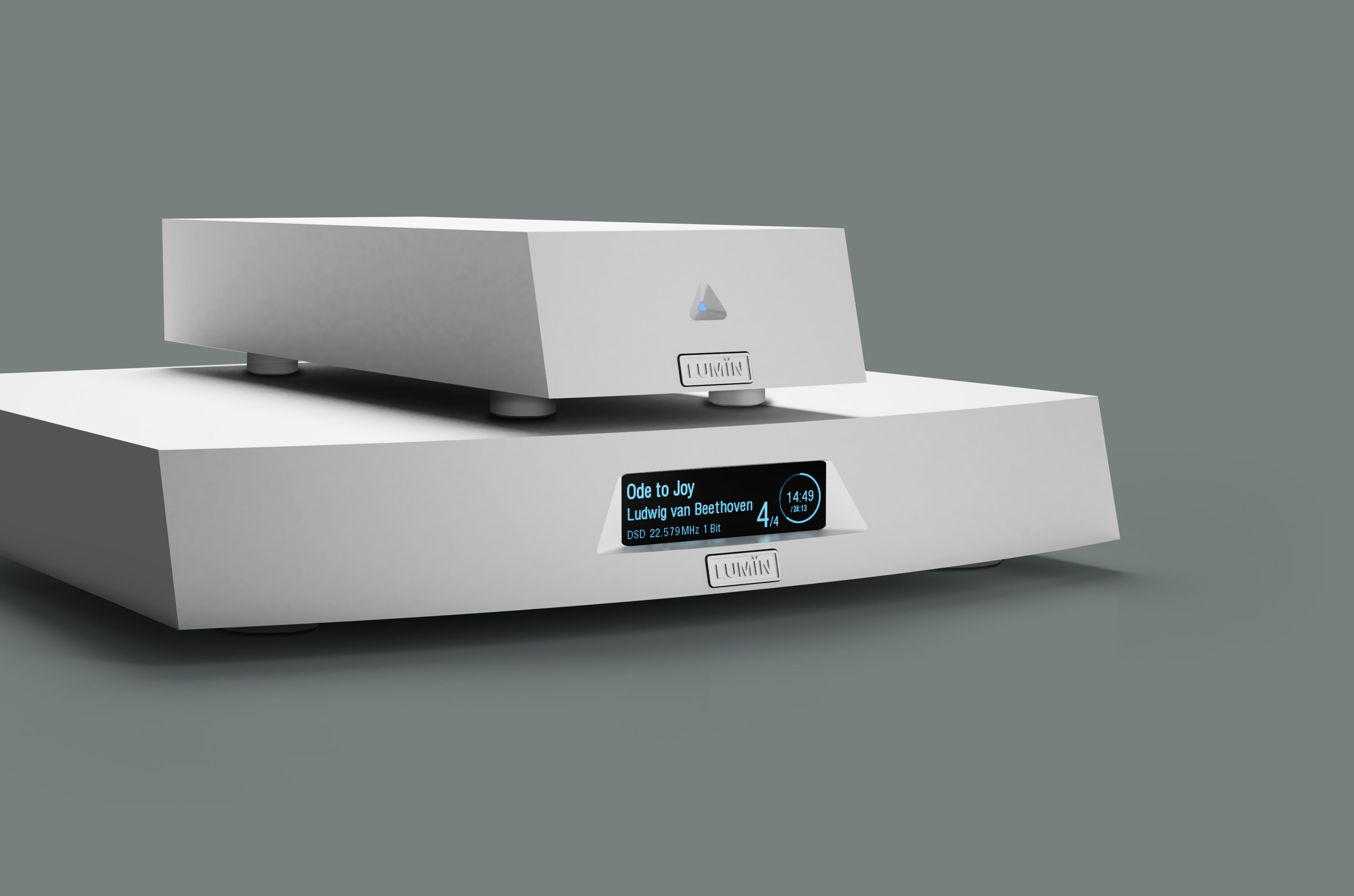

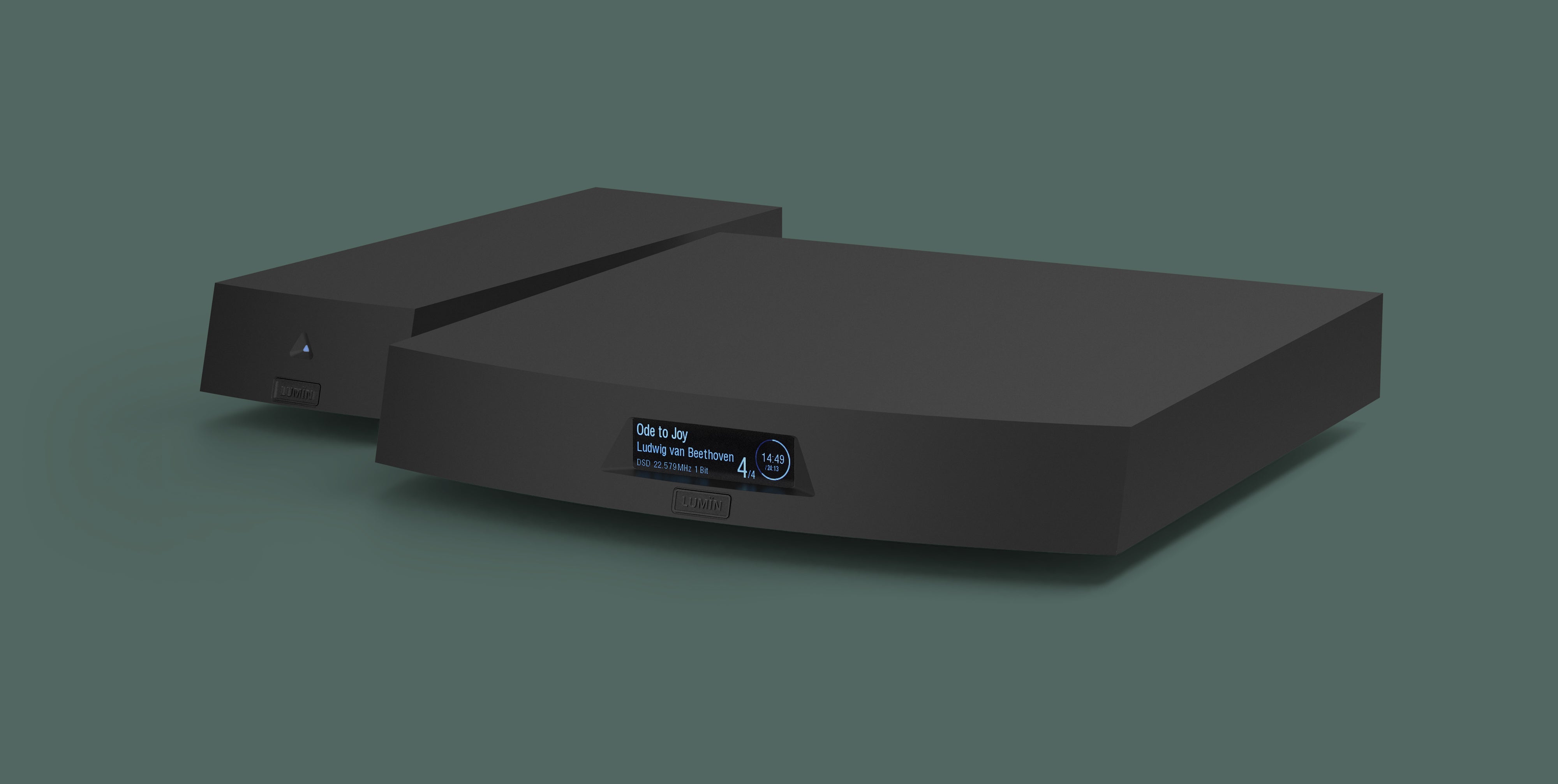

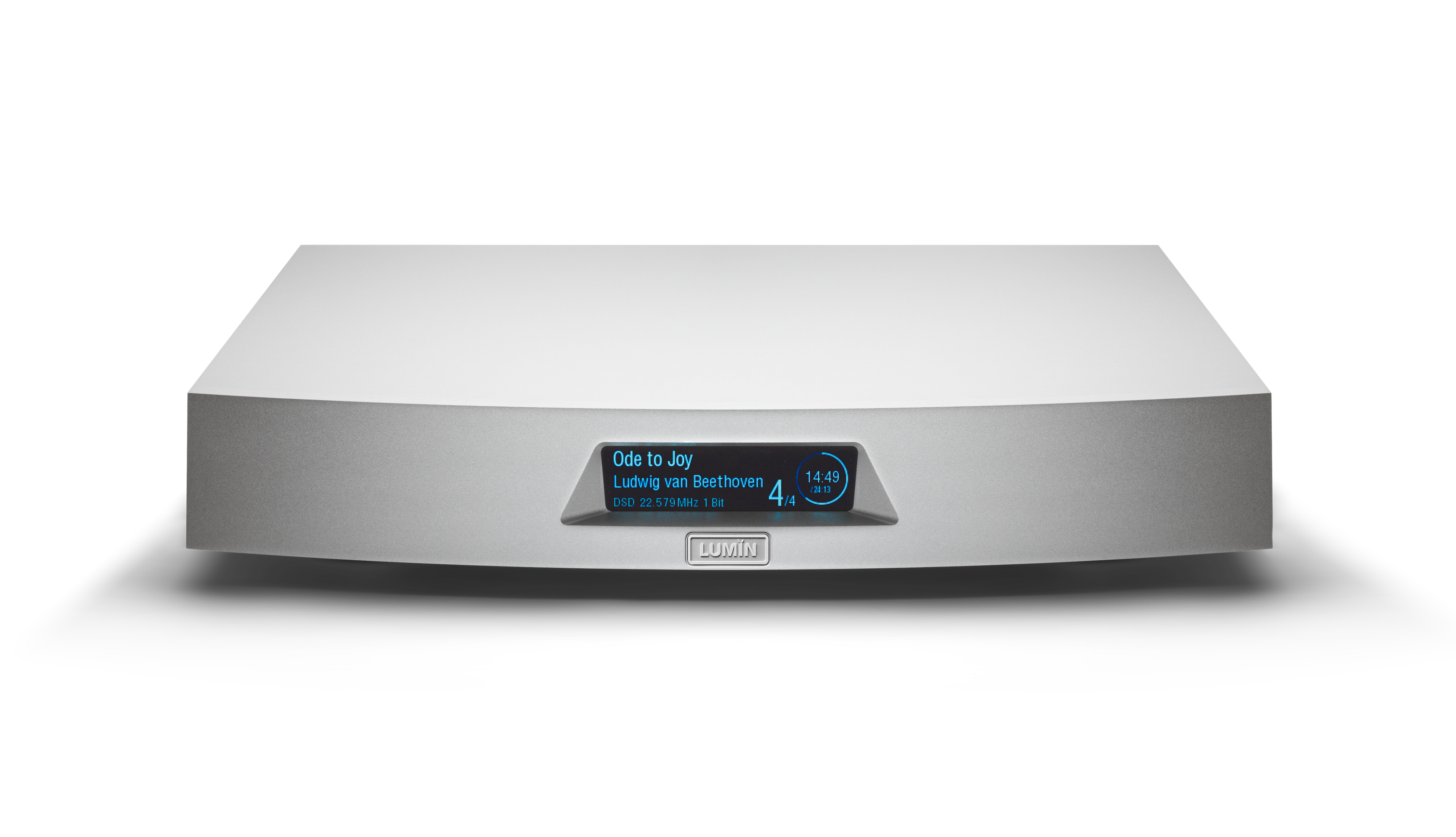

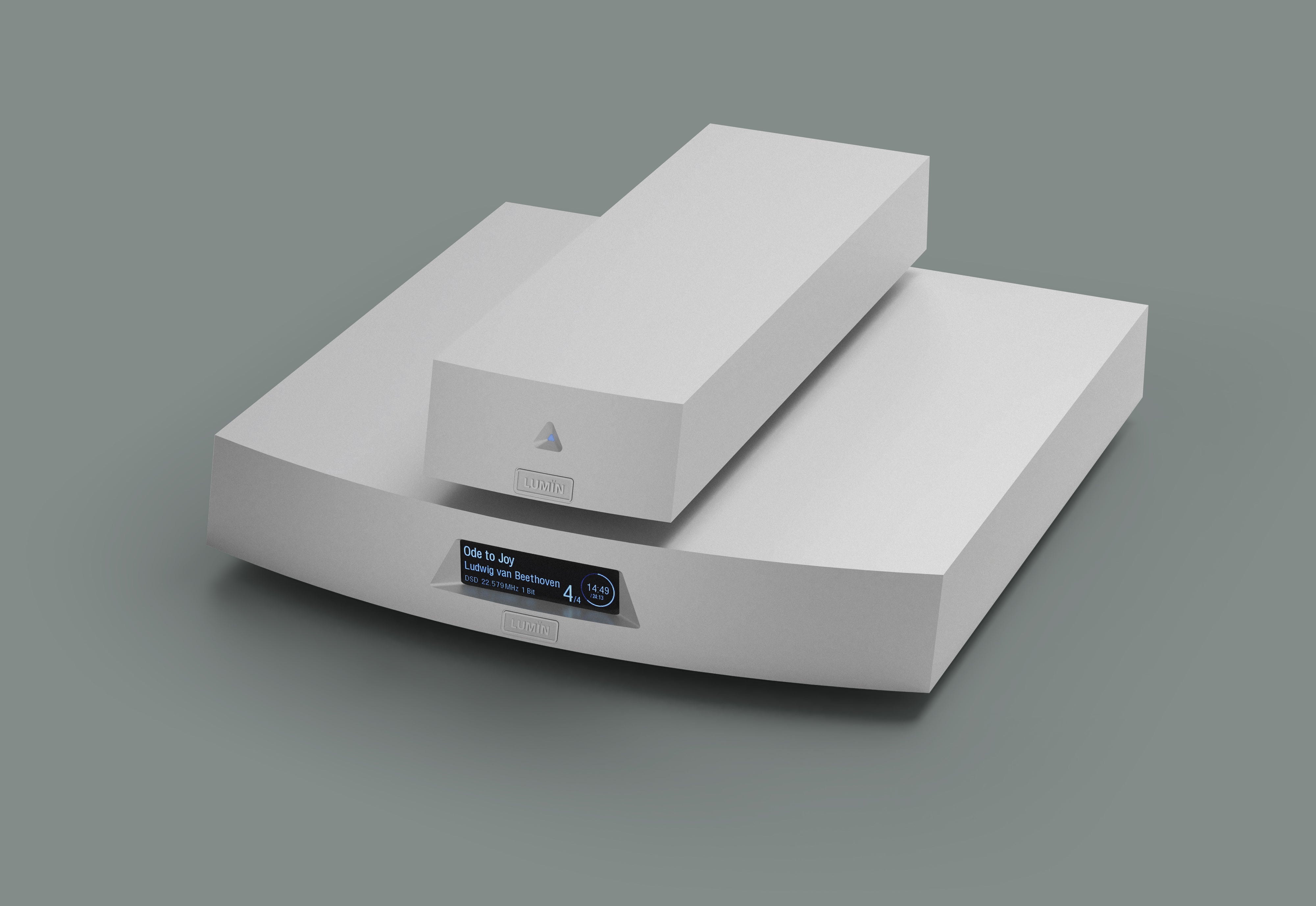

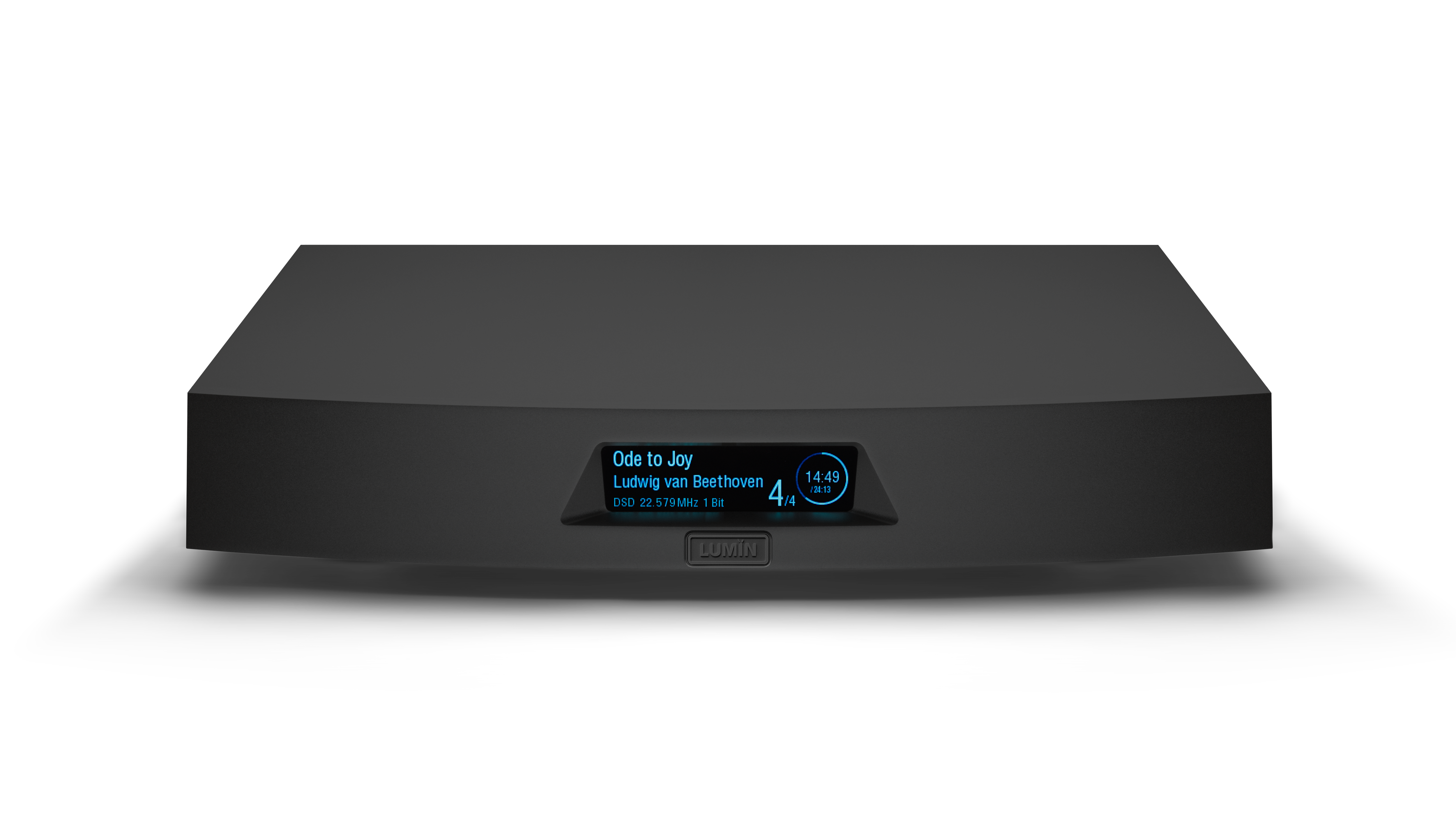

Matching the LUMIN X1 in both prestige and build quality, the LUMIN U2X represents a completely new flagship streaming transport designed to deliver the ultimate digital output. It features a separate power supply and employs the robust single-billet CNC chassis construction method developed for the X1. The U2X focuses on transport-specific innovations, including a newly developed isolated circuit architecture tailored for the widely used USB digital output. It also introduces LUMIN’s most advanced clocking circuits to date, incorporating new 10 MHz clock input and output connections.

Main features:

  • Solid billet CNC chassis for maximum stiffness and isolation
  • External power supply featuring solid billet CNC construction and dual toroids and low-noise linear regulator
  • Native DSD512 & PCM768 playback
  • 10M Clock input and outputs
  • New isolated USB audio output
  • 3 USB ports including a NEW dedicated isolated USB output
  • Fibre Network provides complete isolation from network digital noise
  • Dual-Network interface with built-in Network Switch
  • Leedh Processing lossless volume control

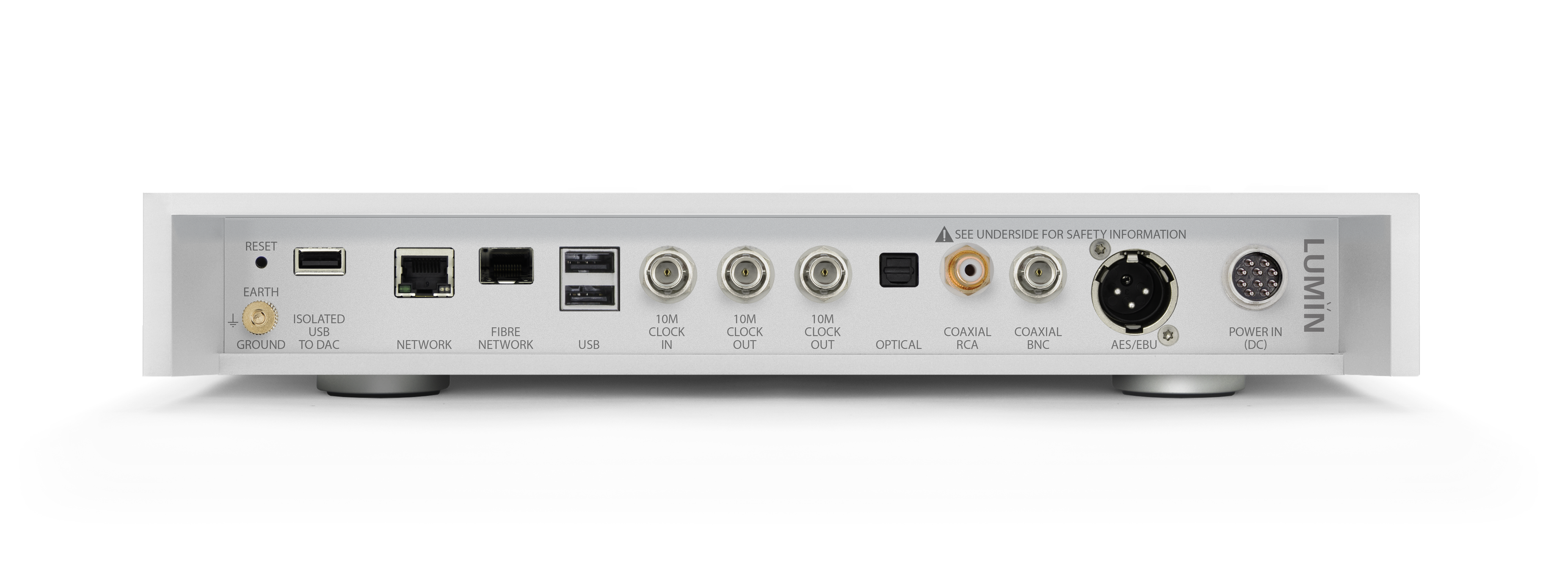

Specs
DSD Support Up to DSD512 (22.5MHz, 1-bit)
PCM Support Up to 768kHz, 16–32-bit, Stereo
Upsampling Rates DSD256 and PCM 384kHz for all files
Digital Output: Isolated USB Native DSD512, PCM 44.1–768kHz (16–32-bit, Stereo)
Digital Output: Optical/Coaxial/AES/EBU PCM 44.1–192kHz (16–24-bit), DSD (DoP) 2.8MHz (1-bit)
10M Clock I/O BNC Input (50 Ohms) and BNC Outputs (50 Ohms)
Optical Network Industry-standard SFP (1000Base-T Ethernet), can be used simultaneously with RJ45
Power Supply External solid billet cnc dual-toroidal with separate digital and analogue circuitry
Finish Black or raw anodised aluminium (with matching PSU)
Lumin Dimensions 350mm (W) x 345mm (D) x 60mm (H)
Lumin Weight 8kg
PSU Dimensions 106mm (W) x 334mm (D) x 60mm (H)
PSU Weight 4kg
