Master3
Phono Cartridge
Tax excluded.
The Master3 and Reference3 incorporate a five-piece OTL cantilever design, reducing tip mass by 5% compared to the Platinum3 and Sonata3 models. Both feature coils made from ultra-high purity long crystal (UHPLC) oxygen-free copper wire. The Master3 is equipped with Grado's custom nude elliptical diamond, while the Reference3 employs Grado's authentic ellipsoid diamond design. Each cartridge undergoes individual calibration for precision.
Specs |
|

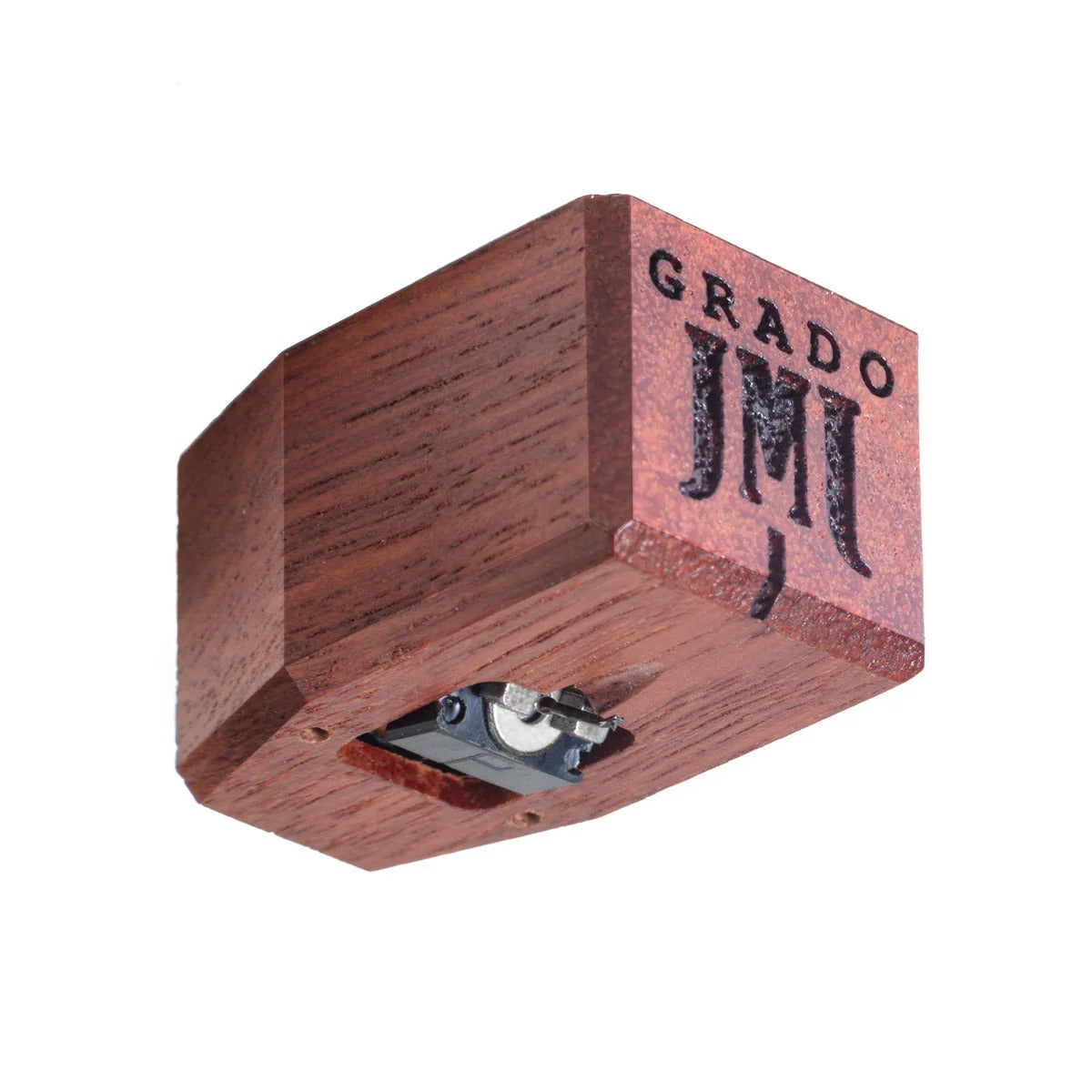

| Body | Australian Jarrah Wood |
| Cantilever | Machined Boron / Diamond Tip |
| Output | High 4.0mV @5 CMV (45), Low 1.0mV @5 CMV (45) |
| Inductance | High Output 55mH, Low Output 6mH |
| Resistance | High Output 660 ohms, Low Output 70 ohms |
| Input Load | 10k-47k ohms |
| Cartridge Weight | 10 grams |
| Tracking Force | 1.6-1.9 grams |
| Compliance | 20μm/mN |
| Channel Separation | Average 30db - 10-30k Hz |
| Controlled Frequency Response | 10-60 KHz |
| Non-Sensitive to Capacitive Load | Yes |
| Builds | High Output, Low Output, Mono |
Master3
Sale price$1,295.00 CAD
