HP-10 BT
Tax excluded.
The HP-10 is our brand new high-end headphone amplifier designed for discerning audiophiles, featuring a Dual-Mono Class-A balanced design that preserves signal purity and delivers exceptional audio quality. It supports any type of headphones thanks to its 4 headphone outputs, the extensive features and powerful output.

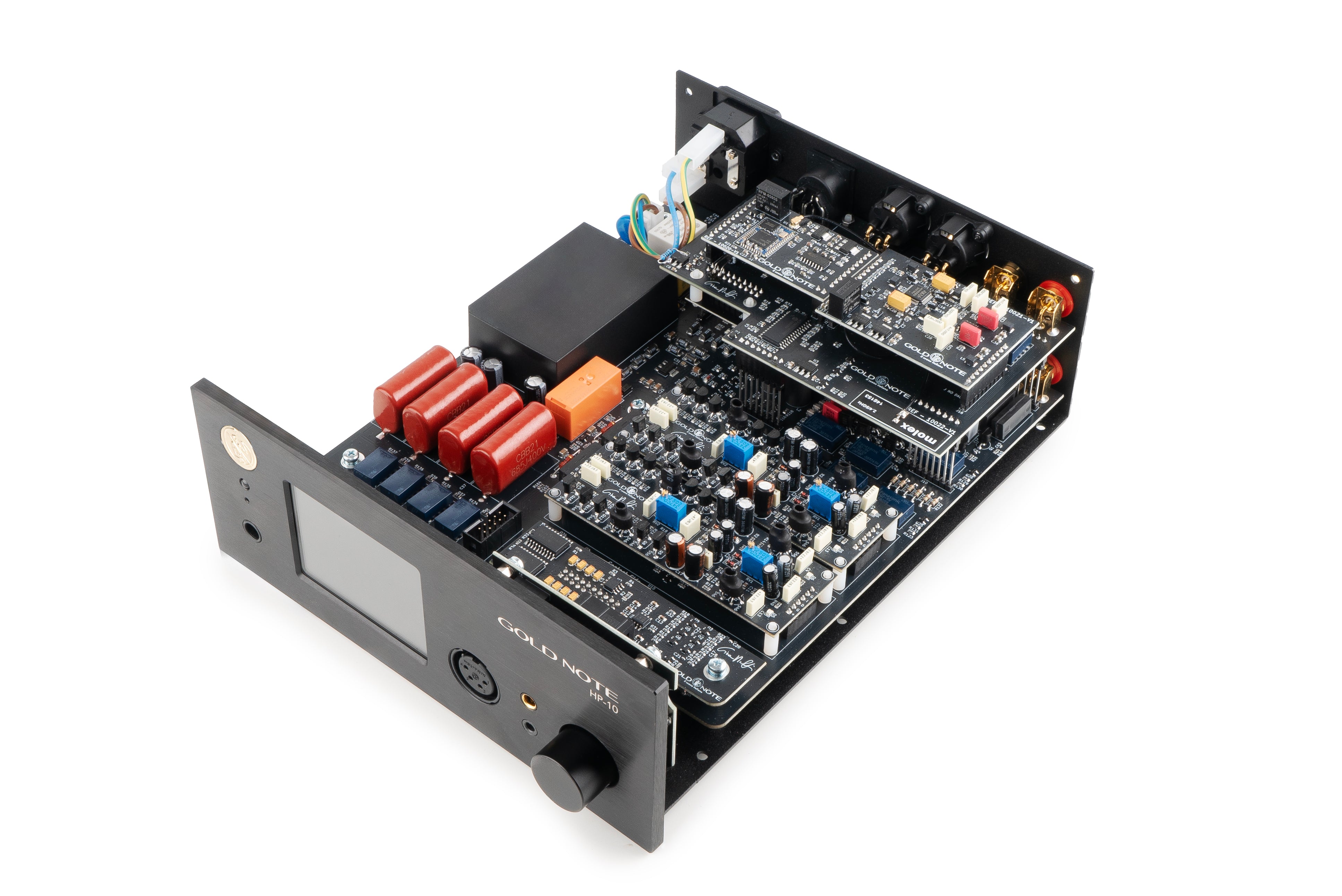

The audio path is designed entirely in the analogue domain and through high-quality discrete components. All settings applied in real-time in the analog domain. Combining top-notch audio quality, versatile connectivity, and unique features, the HP-10 is an outstanding amplifier at an unbeatable price.
The HP-10 features a touchscreen display with an intuitive interface that allows for quick adjustments and a super easy user experience. Ideal for all high-end systems, the HP-10 offers incredible options such as 4 Crossfeed modes for a natural 3D soundstage, Harman curve equalisation, variable gain and damping factor, along with a 0/180° phase switch.
The unit is available in three different models – with the additional digital inputs such as the Bluetooth 5.1 HD aptX (HP-10 BT) and a premium DAC with USB-C input (HP-10 Deluxe) to become a fully standalone unit.
MODELS
The unit is available in three different models:
HP-10
Classic headphone amplifier with analogue inputs.
Connect your sources and headphones, simple as that.
HP-10 BT
Analogue inputs and digital inputs (Bluetooth aptX HD 5.1) with integrated DAC (ESS Sabre). Connect your sources or stream directly from your smartphone, tablet or computer via Bluetooth.
HP-10 DELUXE
Analogue inputs and digital inputs (Bluetooth aptX HD 5.1, USB-C) with premium DAC (AKM AK4493). Connect your sources or stream directly from your smartphone, tablet or computer via Bluetooth and USB-C.
Specs |
|
| Type | Class-A Dual/Mono Headphone Amplifier |
| Frequency Response | 20Hz-20kHz ± 0.3dB |
| Thd (Total Harmonic Distortion) + N | 0,015% @ 1kHz |
| Snr (Signal To Noise Ratio) | 110dB |
| D/A Converter | ESS ES9023 (HP-10 BT), AKM AK4493 (HP-10 DELUXE) |
| Bluetooth | 5.1 HD aptX (HP-10 DELUXE, HP-10 BT) |
| Crossfeed | Adjustable (full spectrum or lows / mids / highs) |
| Analogue EQ | Harman Curve, Superflat |
| Damping Factor | Adjustable (High/Low) |
| Phase | Adjustable (0/180) |
| IR Receiver | For multifunctional remote control |

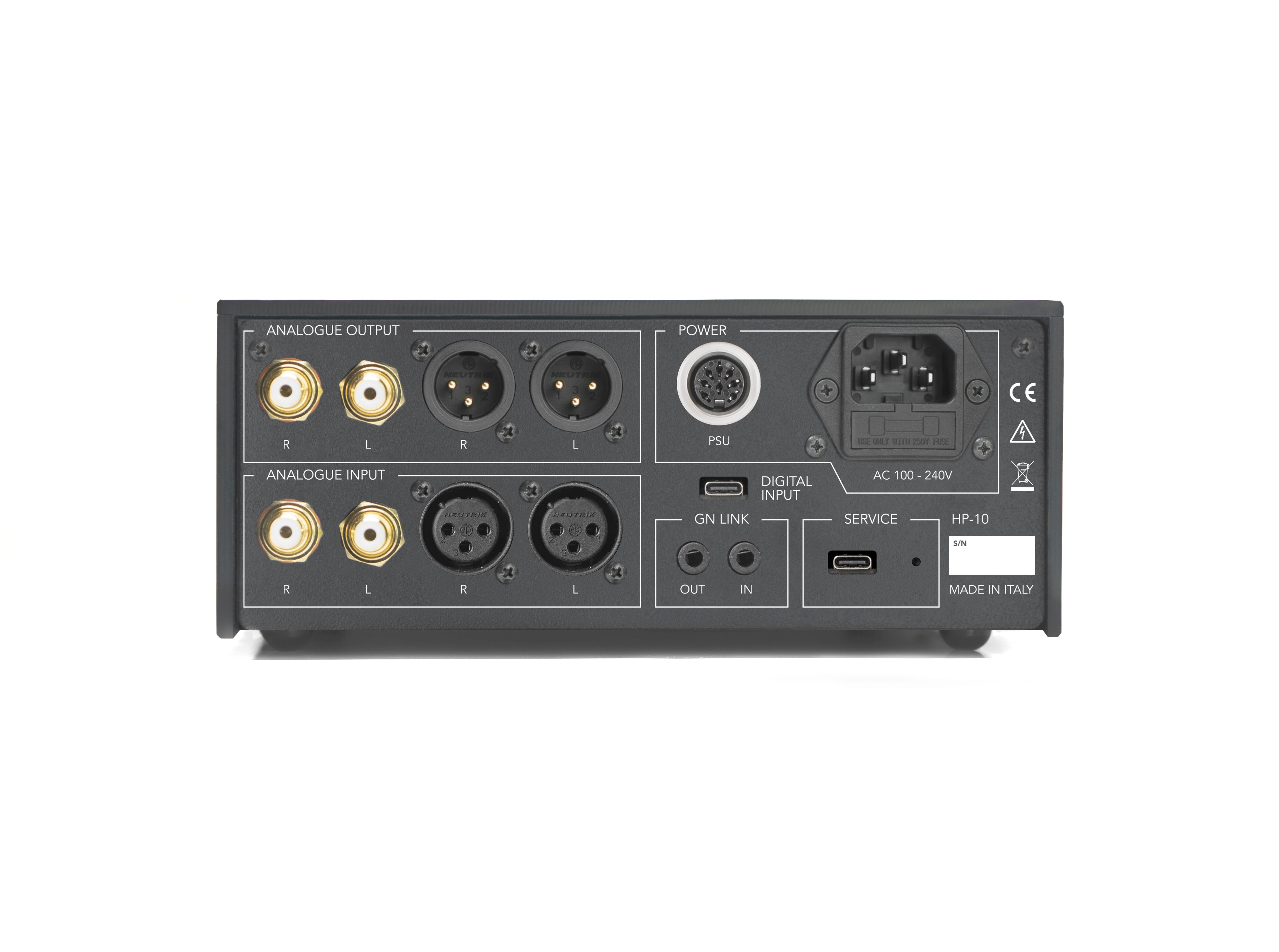

| Inputs And Outputs | Headphone Outputs: 3,5mm jack (unbalanced), 6,3mm jack (unbalanced), 4,4mm jack (balanced), 4-pin XLR (balanced). Line Outputs: 1x unbalanced RCA, 1x balanced XLR. Analogue Inputs: 1x unbalanced RCA (5 Vrms max), 1x balanced XLR (8 Vrms max). Digital Inputs: 1x USB-C up to DSD512, PCM 768kHz (HP-10 DELUXE), 5.1 HD aptX (HP-10 DELUXE, HP-10 BT). |
| Headphone Power Output | 10W Max |
| Power | Power Supply: 100-240V, 50/60Hz. Power Consumption: Max 25W. Fuse: 3,15 AMP T |
| Dimensions | 200mm W | 80mm H | 260mm D |
| Weight | Kg. 3.5 – net, Kg. 4.5 – boxed |
