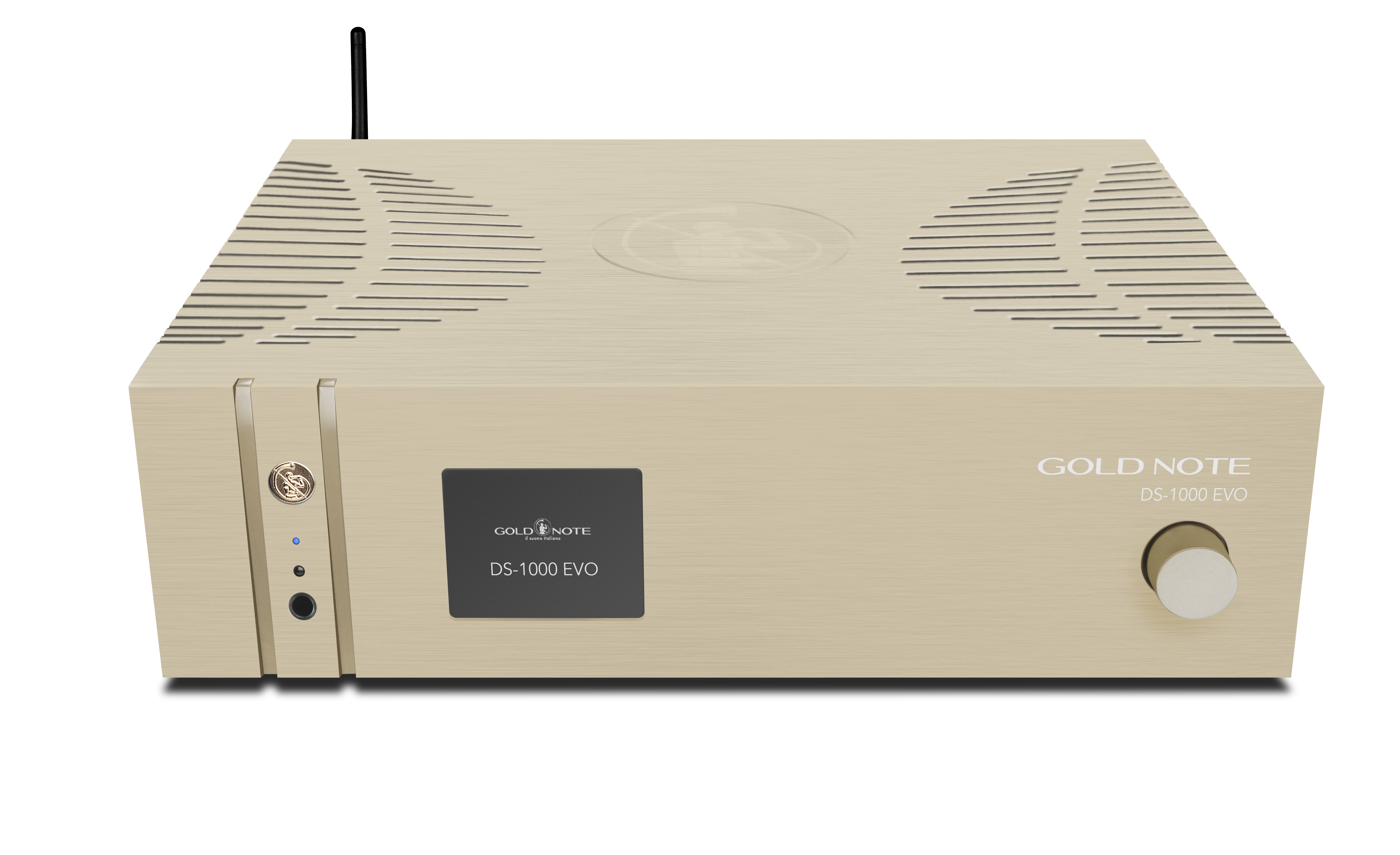

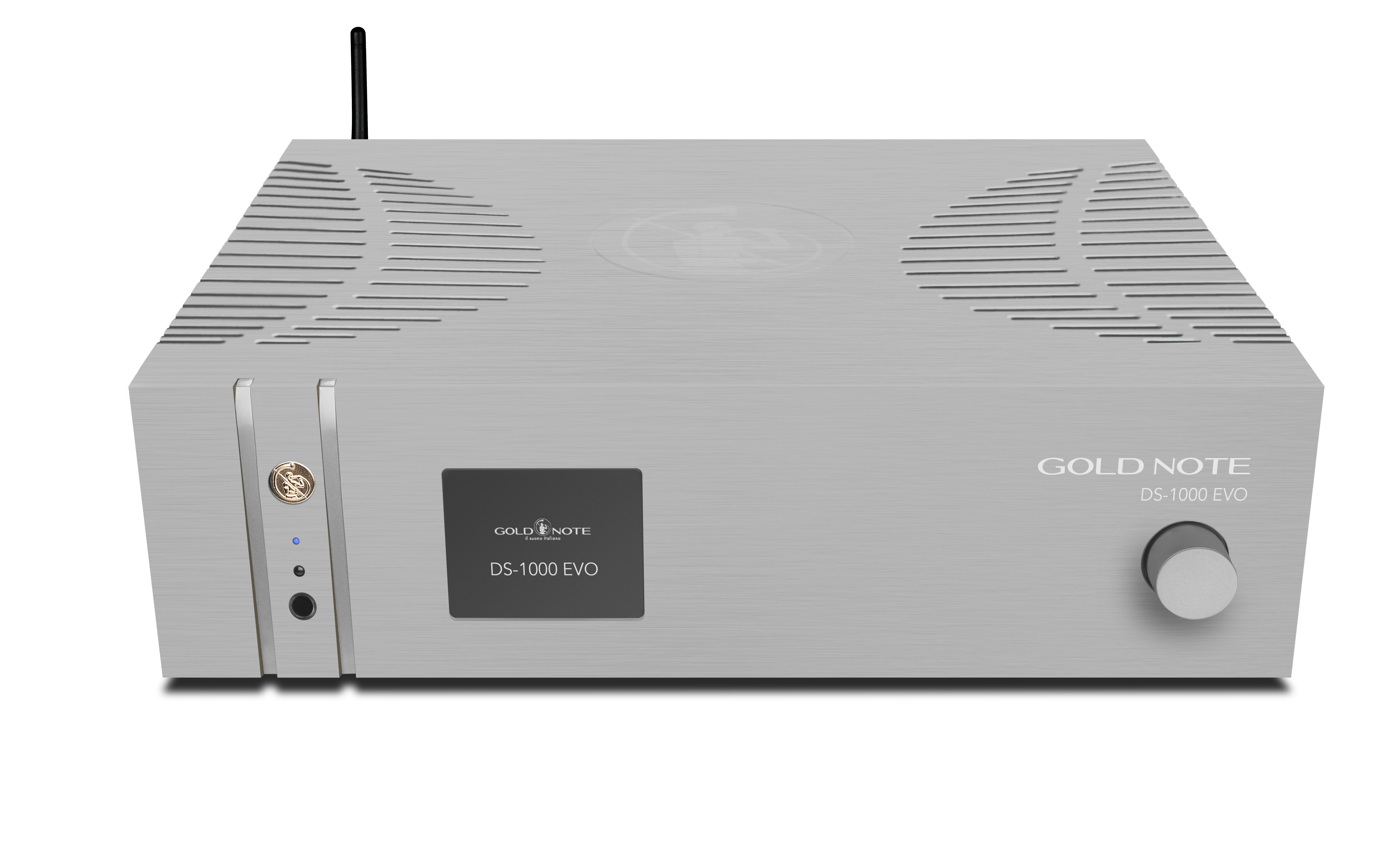

DS-1000 EVO LINE
Tax excluded.

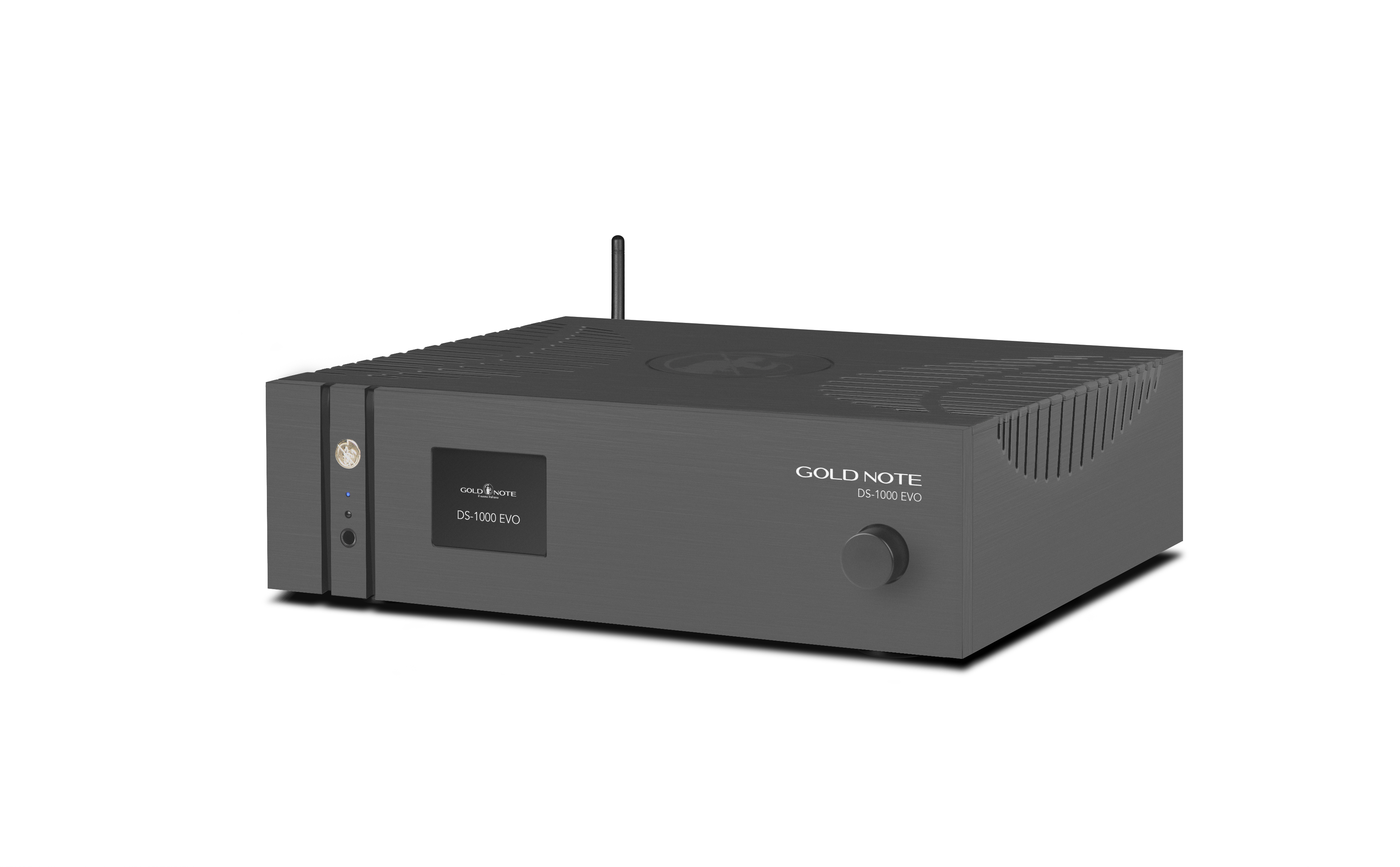

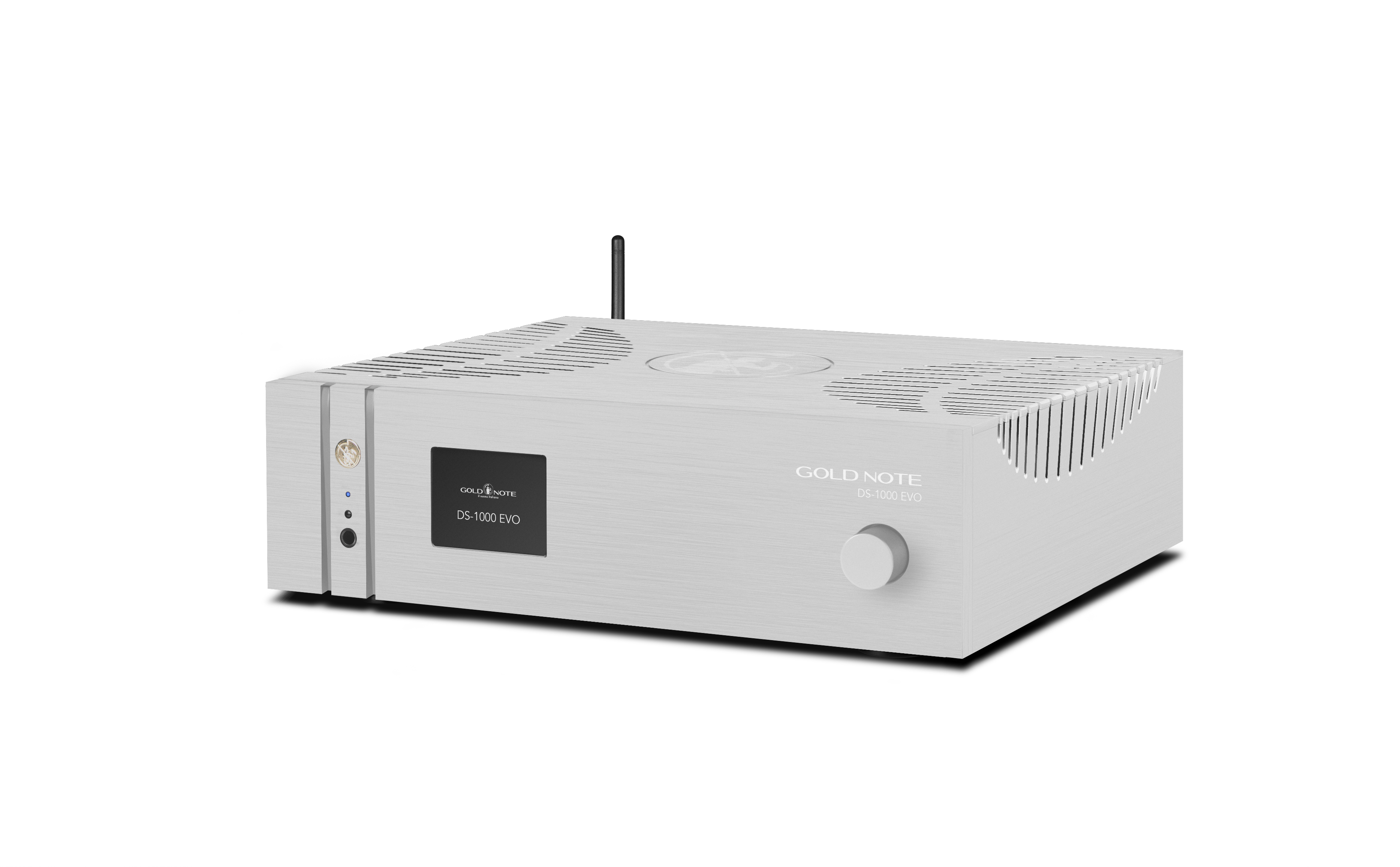

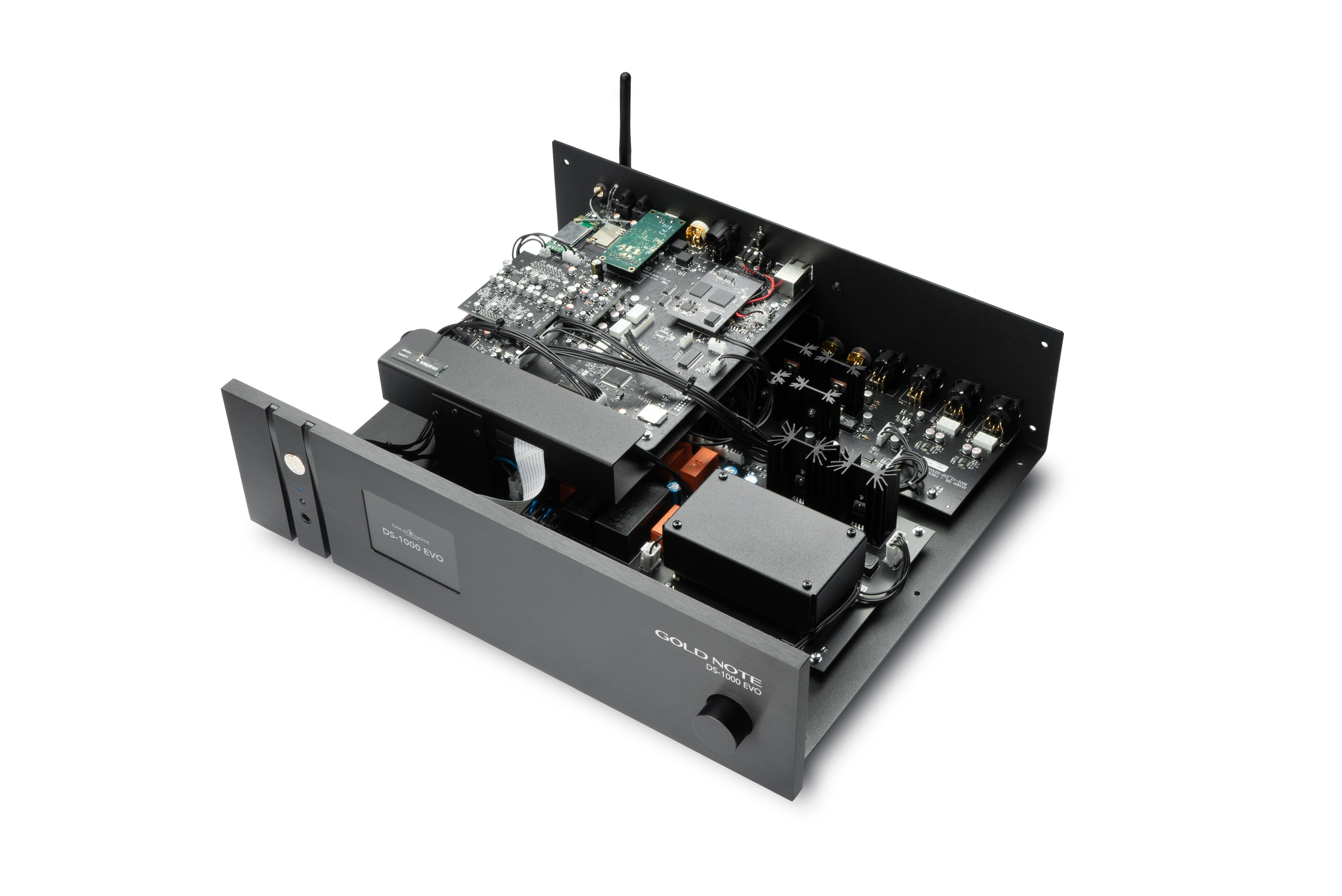

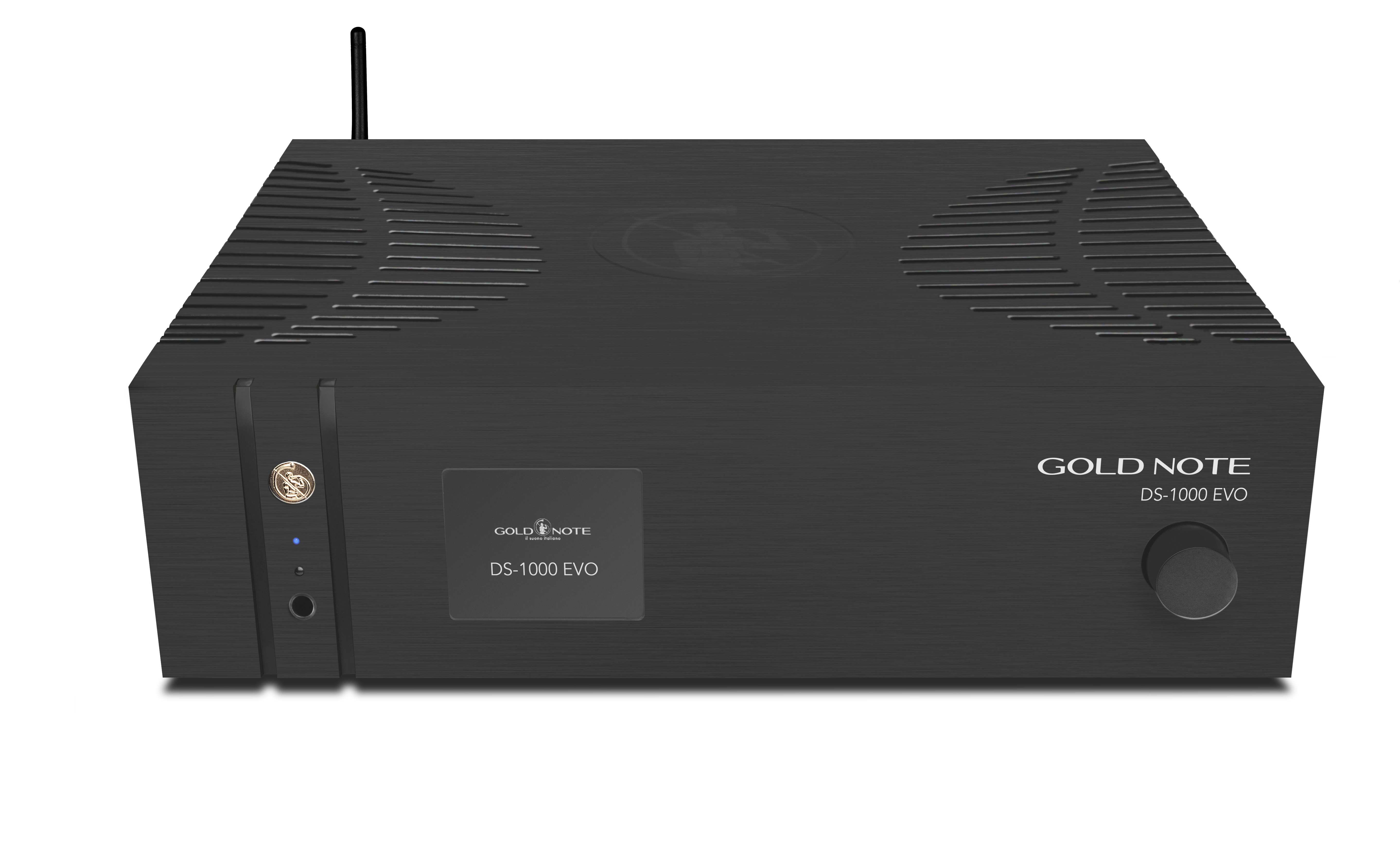

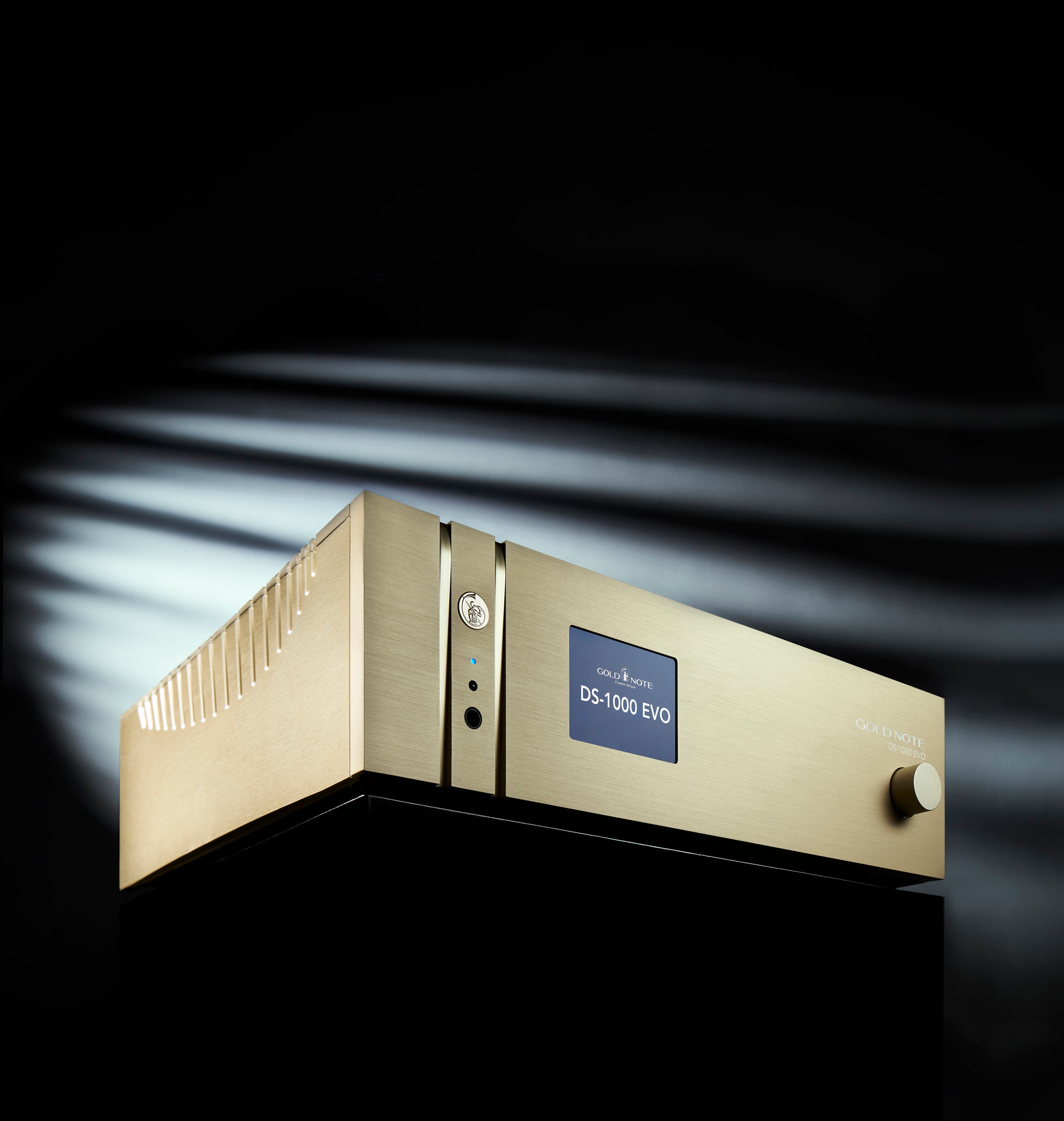

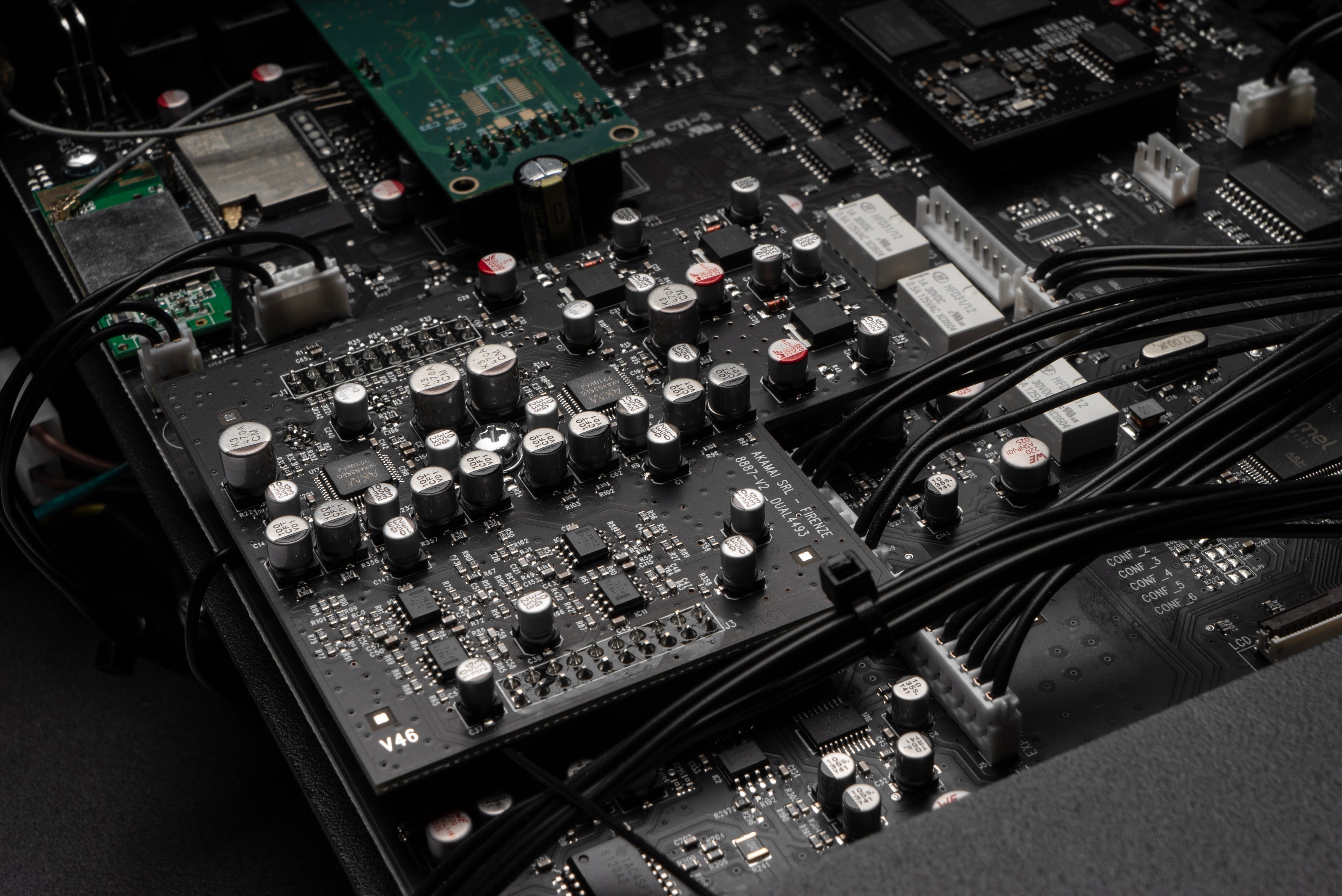

The DS-1000 EVO is the most advanced streaming DAC we have ever designed, combining advanced technology solutions applied to the digital-to-analogue domain with our unique know-how in delivering compelling sound quality, or, as we call it, the Italian Sound. The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk. Streaming is as easy as pressing play on Tidal thanks to Tidal Connect, or simply connecting your computer with a USB cable – no audio file will be a problem, supporting MQA, PCM (up to 32bit/384kHz) and DSD (up to DSD512).
Completing the design, the output stage in Class A features audio-grade discrete components selected to deliver our unique Italian sound.
STREAMING IN ULTRA-HIGH RESOLUTION
With the DS-1000 EVO, you can stream through Roon, Airplay, Tidal, MQA, Qobuz, vTuner, and Deezer. With Tidal Connect and Spotify Connect, streaming is even easier directly from within their apps. To access your collection of digital music, stored locally on a NAS or computer, you can use any UPnP/DLNA software from your smartphone or tablet. Or simply download our app GN Control (free for iOS and Android) to control all the features and functions of the DS-1000 EVO, as well as managing your music and streaming services.
HEADPHONES AMP AND LINE PREAMPLIFIER

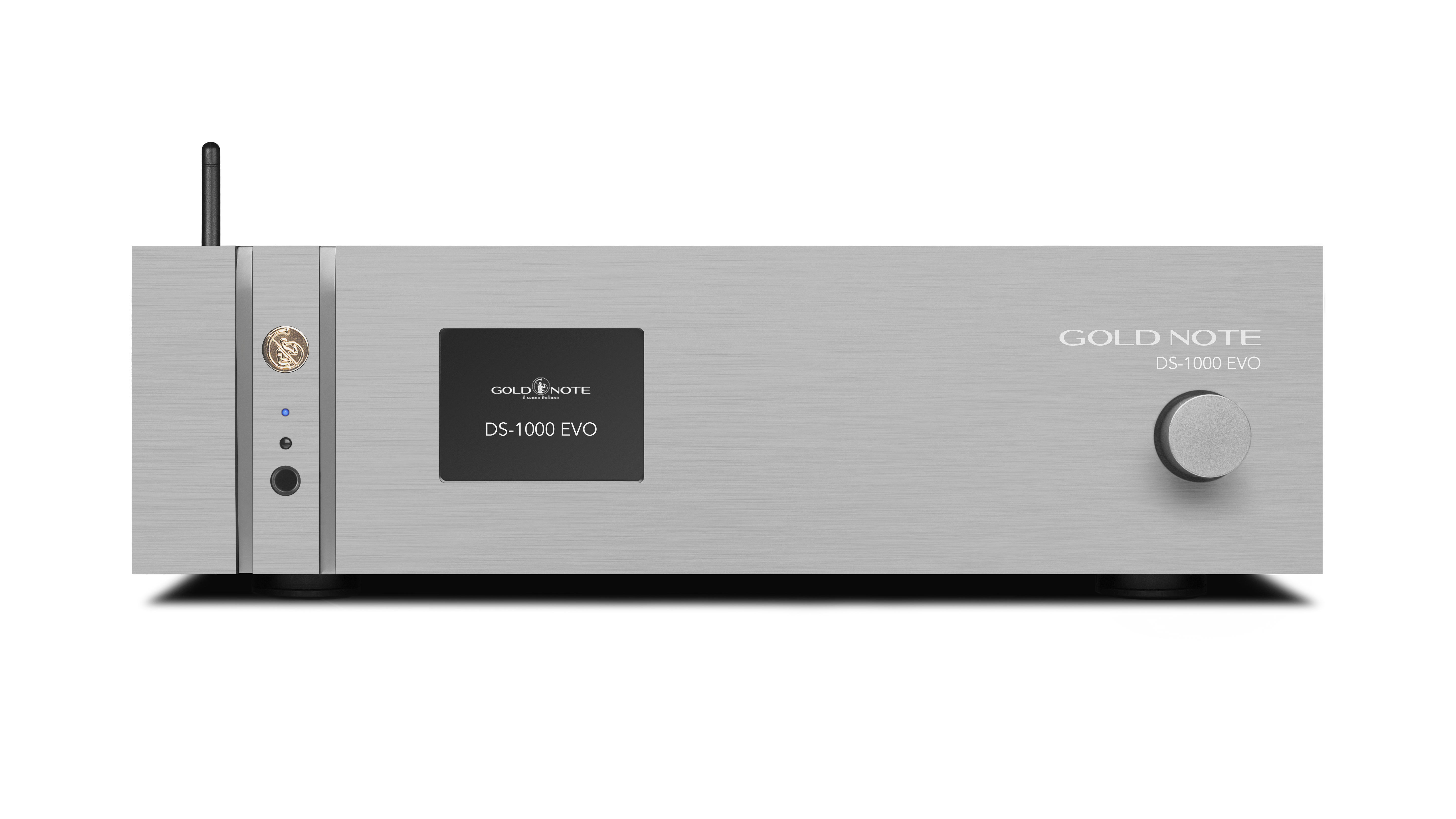

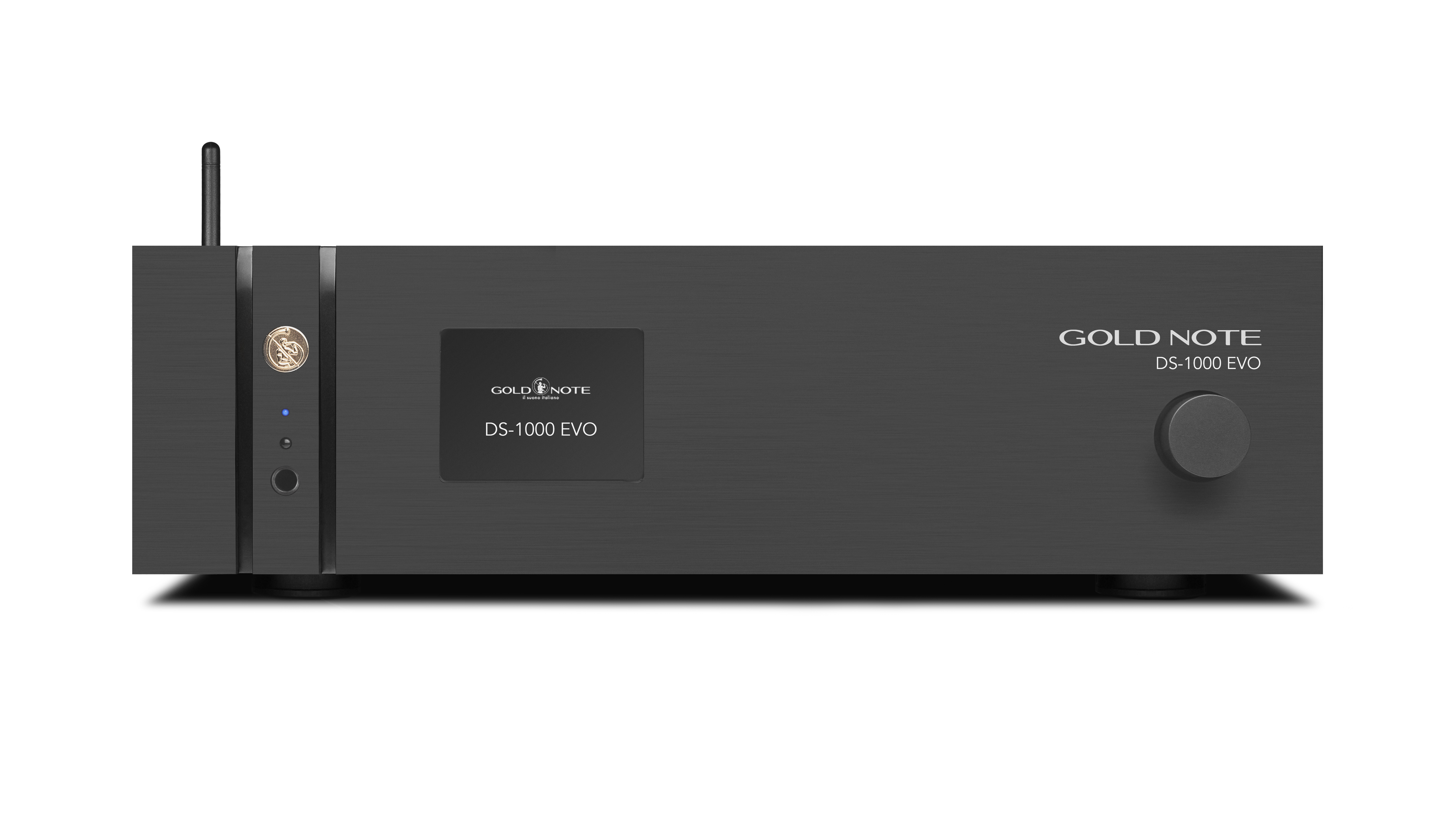

The DS-1000 EVO models feature a professional 6.3mm headphones output with two sensitivity levels (High/Low), a proprietary technology we developed to get the best out of your headphones. The DS-1000 EVO LINE is also equipped with a Class A preamp stage to control the volume directly in the analogue domain, which can be bypassed when the unit is set to DAC mode.
ROON READY
Being Roon Ready means that Gold Note uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.
TIDAL CONNECT
With Tidal Connect you can stream music to your DS-1000 EVO directly from the Tidal app (available on iOS and Android).
AUDIRVĀNA
Plays with Audirvāna products are certified to play music from Audirvāna over USB or network with the best level of integration and audio performance.
QOBUZ CONNECT
With Qobuz Connect you can stream music to your IS-1000 MkII directly from the Qobuz app (available on iOS and Android).
MODELS
The unit is available in three different models:
DS-1000 EVO
DAC: Dual/Mono AKM AK4493
Resolution: up to DSD512 and PCM 32bit/384kHz
Digital inputs: Ethernet, USB-A, USB-B, AES/EBU, COAX, TOS
DS-1000 EVO LINE
DAC: Dual/Mono AKM AK4493
Resolution: up to DSD512 and PCM 32bit/384kHz
Digital inputs: Ethernet, USB-A, USB-B, AES/EBU, COAX, TOS
Analogue inputs: XLR balanced, RCA unbalanced
Preamplifier: Class A preamp stage with discrete components
Specs |
|
DAC | 2x AKM AK4493 |
Frequency Response | 20Hz-20kHz +/-0.1dB |
Thd (Total Harmonic Distortion) | 0.001% max |
Signal To Noise Ratio | 125dB |
Dynamic Range | 120dB |
Preamp Stage Volume Control | Available only on DS-1000 EVO LINE |
Network Connectivity | LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps), Bluetooth: High Definition 5.0 (44/16) |
High Quality Streaming | Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner |
Supported Audio Formats | PCM up to 32bit/384kHz, DSD up to DSD256 (DSF, DFF), AIFF (.aif, .aiff, .aifc), ALAC, WAV (.wav) packed/unpacked, FLAC, MP3, Apple Lossless, OGG, Monkey’s |
Supported Media Servers | UPnP*, DLNA, Roon |

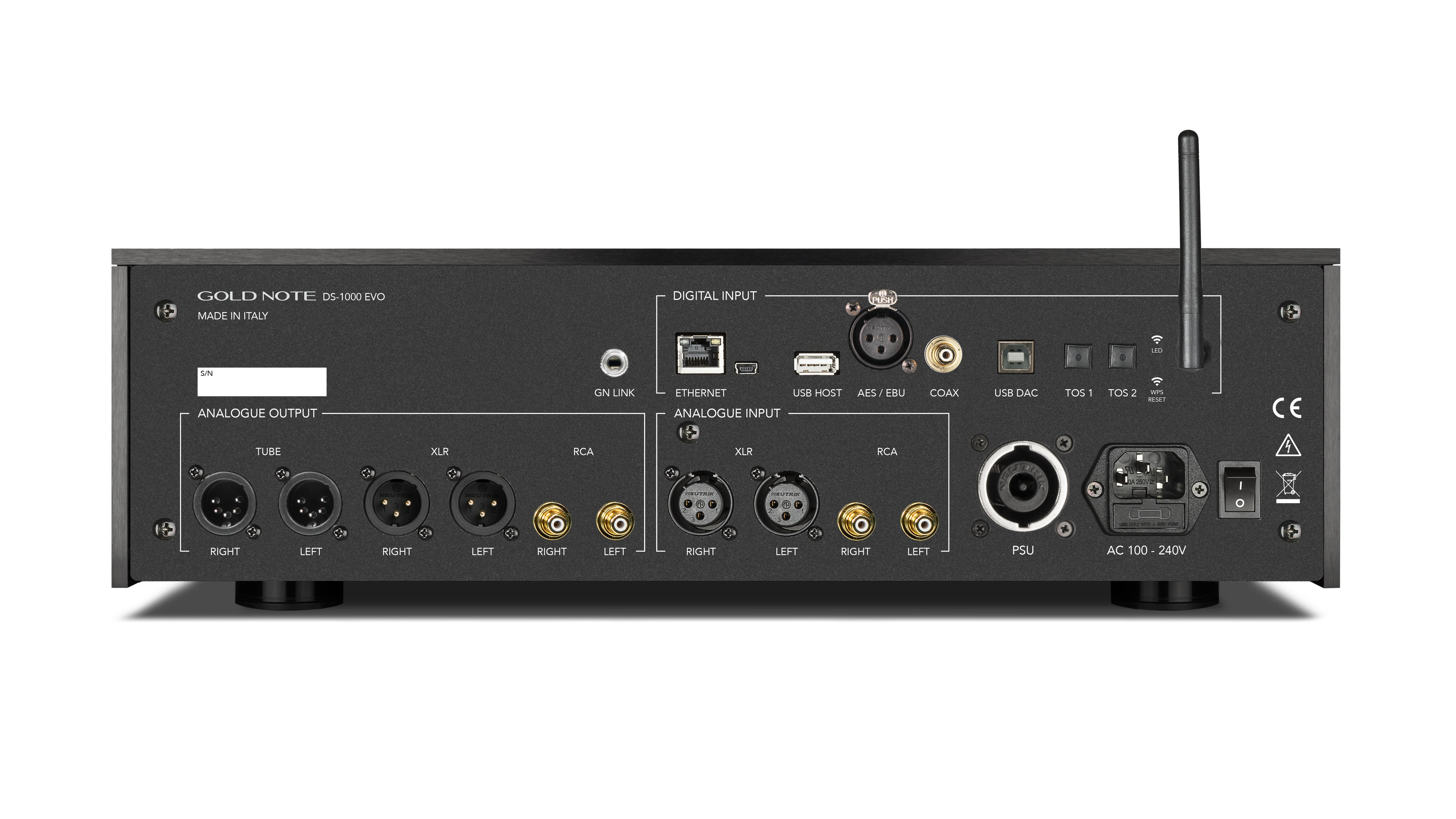

Inputs And Outputs | Digital Inputs: 1x RCA coaxial PCM up to 24bit/192kHz, 1x AES/EBU balanced PCM up to 24bit/192kHz, 2x TOS-Link PCM up to 24bit/192kHz, 1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz, 1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives). Analogue Inputs: DS-1000 EVO LINE ONLY, 1x RCA unbalanced, 1x XLR balanced. Audio Outputs Dac: 1x RCA 2Vrms, 1x XLR 2Vrms. Audio Outputs Preamp: 1x RCA unbalanced, 1x XLR balanced, 1x headphone 6,3mm jack on front panel |
Output Impedance | Rca 50Ω, Xlr 100Ω |
Power | Power Supply: 100-240V / 50-60Hz. Power Consumption: 30W. Fuse: 2A T |
Dimensions | 430mm W | 135mm H | 375mm D |
Weight | Kg. 10 – net, Kg. 15 – boxed |
