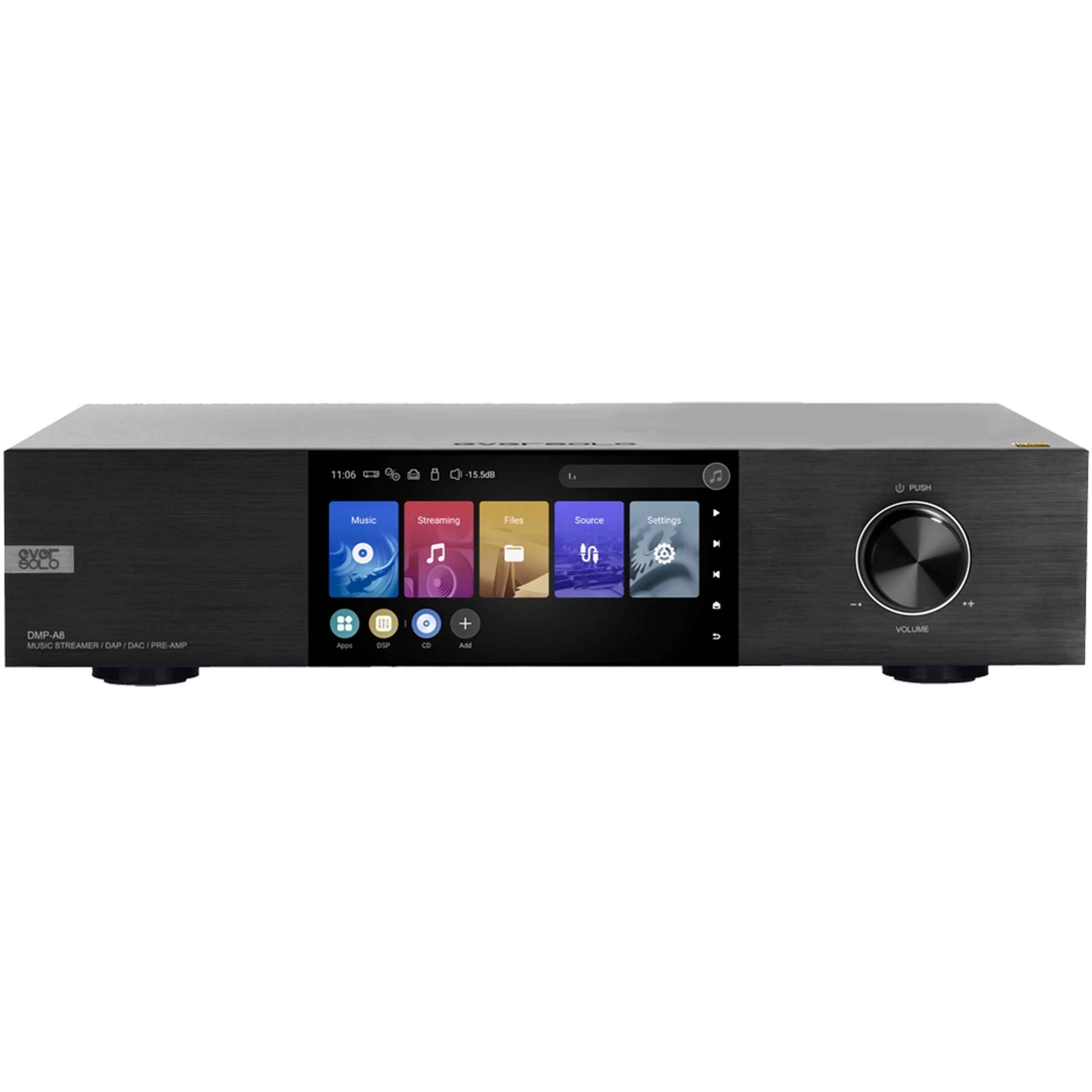

DMP-A8
Tax excluded.
The DMP-A8 integrates multiple high-performance functions—music streaming, digital audio playback, digital-to-analog conversion, and preamplification—into a single, expertly engineered device. Designed for exceptional audio quality, it features a quad-core processor and 64GB of RAM optimized for lossless playback. Its flagship DAC uses separate chips for digital and analog processing, supported by a hybrid power supply that isolates streaming and DAC sections. With resistor-to-resistor volume control, fully balanced circuitry, versatile digital I/O including HDMI ARC, and advanced digital signal processing, it delivers superior sound. The unit boasts a wide aluminum chassis, a large 6-inch touchscreen, app and remote control, local music management, and access to multiple streaming services.
Specs |
|
| Display | 6" LCD touchscreen |
| Internal Memory | 4GDDR4 +64GeMMC |
| DAC | AK4191EQ+AK4499EX |
| Audio Processor | XMOS XU316 |
| Op-amp Chip | OPA1612 |
| Power Supply | High-quality, low-noise linear + digital dual power supply |
| SSD | Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included). |
| USB-A Port | USB3.0*2 |
| Ethernet | RJ-45(10/100/1000Mbps) |
| WiFi | WiFi 2.4G+5G dual band |
| Playback and DAC Decoding | Support up to stereo DSD512, PCM 768KHz 32Bit |
| Music Service | Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP |
| Streaming | Roon Ready,Air Play, DLNA, Tidal Connect etc. |
| Bluetooth Audio Input | BLuetooth BT5.0, support SBC/AAC |
| USB-B Audio Input | Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit. |
| Optical/Coaxial Audio Input | Support up to stereo PCM 192KHz 24Bit, Dop64 |
| HDMI ARC | Support up to stereo PCM 192KHz 24Bit |
| Analog preamp audio input | XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB |
| USB Audio Output | Support up to stereo DSD512，PCM 768KHz 32Bit |
| IIS Output | Support up to stereo DSD512, PCM 768KHz 32Bit |
| Optical/Coaxial Audio Output | Support up to stereo PCM 192KHz 24Bit, Dop64 |
| Analog Audio Output | Preamp Audio Output:XLR(Balanced)+RCA(Unbalanced) |
| XLR Output Audio Characteristics | Output level: 4.2V, Frequency response: 20Hz~20KHz(±0. 25dB), Dynamic range: > 128dB, SNR: >128dB, THD+N: <0.00009%(-120dB) @No-wt, Crosstalk: >-121dB |
| RCA Output Audio Characteristics | Output level: 2.1V, Frequency response: 20Hz~20KHz (±0. 25dB), Dynamic range: > 125dB, SNR: >125dB, THD+N: <0.00010%(-119dB)@A-WT, Crosstalk: >-121dB |
| Control Method | Mobile App，Touch screen control，IR+Bluetooth remote control |
| PSU | AC 110~240V 50/60Hz Max 0.35A |
| Rated Power | 16W |
| Dimensions | W 388mm*L 248mm* H 90mm |
| Packing List | Power cable*1, Remote Control*1，Screwdriver*1，user manual*1 |
