DAC-Z8
Streamer
Tax excluded.

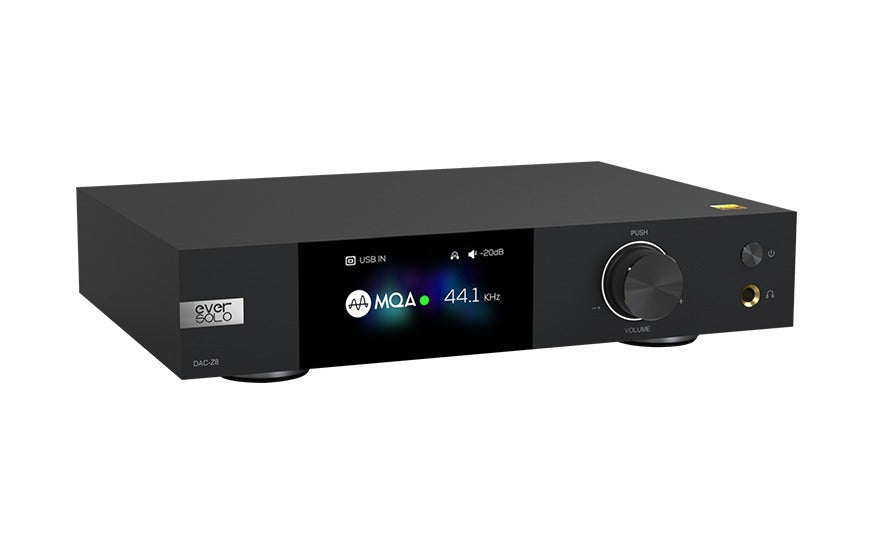

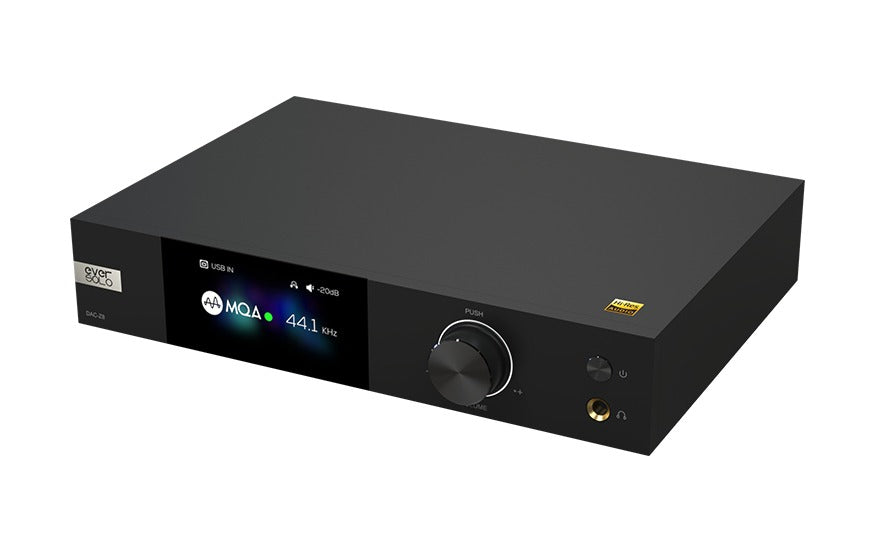

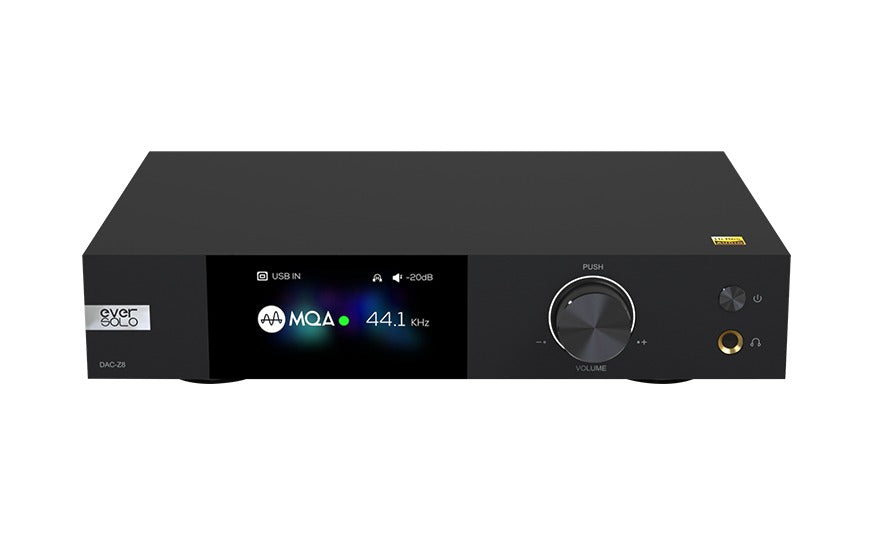

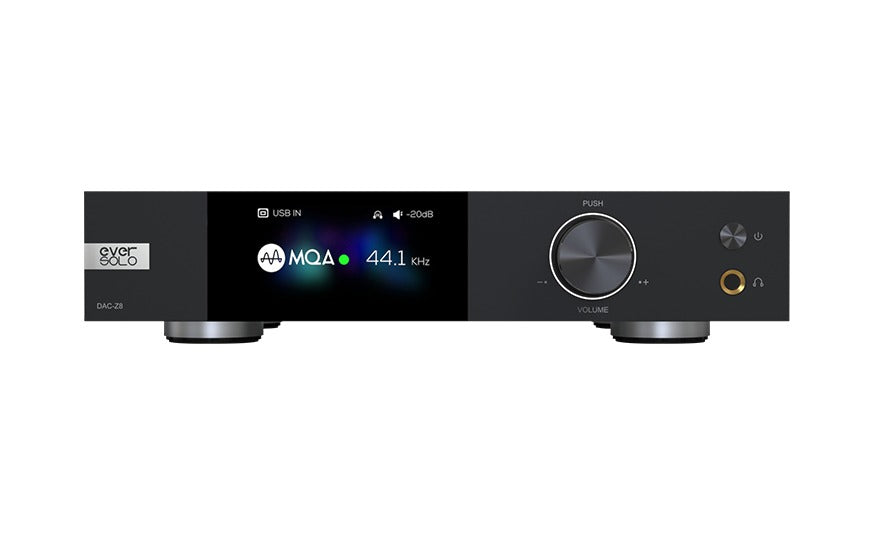

DAC-Z8 is a compact digital to analog converter with excellent workmanship and high performance. Enjoy exceptional sound quality, great preamp performance and a convenient built-in headphone amplifier. Featuring the XMOS 316 processor and flagship ES9038 Pro DAC chip, it supports up to DSD512, PCM 768Khz @ 32Bit, and MQA full decoding. Convenient control options and a rich set of inputs make the device a worthy pairing with high end headphones and stereo speakers.
Specs |
|
| Display Screen | 3-inch LCD Screen |
| Chassis | Aviation aluminum alloy |
| DAC | ES 9038Pro |
| Audio Processor | XMOS XU316 |
| OPA Chip | OPA1612*10 |
| Power Supply | Low noise switching power supply |
| Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC, Bluetooth protocol |
| USB-B DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS, Up to stereo DSD512, PCM 768KHz 32Bit and MQA |
| USB-C DAC Input | Compatible with Windows (7, 10), Mac, Android and IOS, Up to stereo DSD512, PCM 768KHz 32Bit, MQA |
| Optical Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |
| Coaxial Audio Input | Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA |

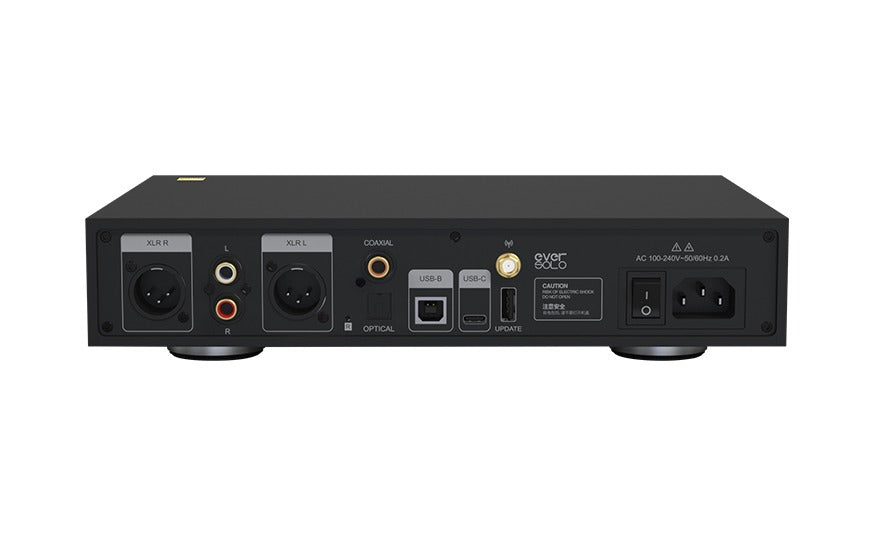

| Analog Audio Output | Preamp output: XLR (balanced), RCA, Headphone amp output: 6.35mm single-ended |
| USB Port | USB2.0*1（only for firmware upgrade） |

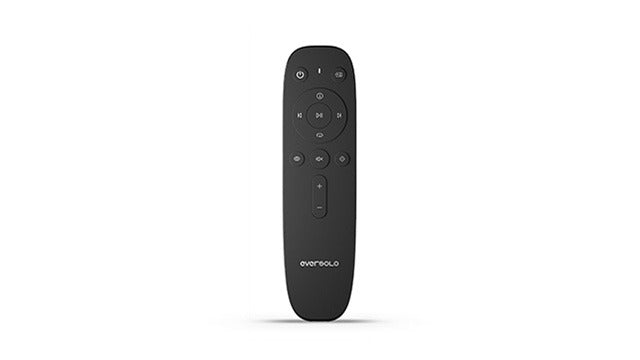

| Control Methods | Remote control, mobile APP control and knob control |
| Headphone Impedance | 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω） |
| XLR Audio Characteristics | Output level(Vrms): 4.1Vrms@0dBFS, THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz）, THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz）, Noise@No-wt: <1.2uVrms, SNR @No-wt: 133dB@1kHz, Frequency response: 20Hz-20kHz(±0.1dB), Crosstalk: -130dB@1kHz, DNR @No-wt: 133dB@1kHz |
| RCA Audio Characteristics | Output level (Vrms): 2.3Vrms@0dBFS, THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz), THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz), Noise @No-wt: <1.5uVrms, SNR @No-wt: 126dB@1kHz, Frequency response: 20Hz-20kHz(±0.1dB), Crosstalk: -123dB@1kHz, DNR@No-wt: 126dB@1kHz |
| Headphone (low gain mode) | Output level(Vrms): 1.2Vrms@0dBFS, Maximum undistorted power: 45 mW@32Ω, THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz), THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz), Noise @No-wt: <2uVrms, SNR@No-wt: 124dB@1kHz, Frequency response: 20Hz-20kHz(±0.1dB), DNR @No-wt: 119dB@1kHz |
| Headphone (high gain mode) | Output level(Vrms): 2.8Vrms@0dBFS, Maximum undistorted power: 26 mW@300Ω, THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz), THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz), Noise@No-wt: <2uVrms, SNR@No-wt: 124dB@1kHz, Frequency response): 20Hz-20kHz(±0.1dB), DNR @No-wt: 124dB@1kHz |
| Power Input | AC 110~240V 50/60Hz Max 0.35A |
| Rated Power | 9W |
| Dimensions | 270mm(W) * 187mm(D)* 50mm(H) |
| Packing List | Remote control*1, power cable*1, USB cable*1, product manual*1 |
DAC-Z8
Sale price$999.00 CAD
