BORDEAUX
Tax excluded.

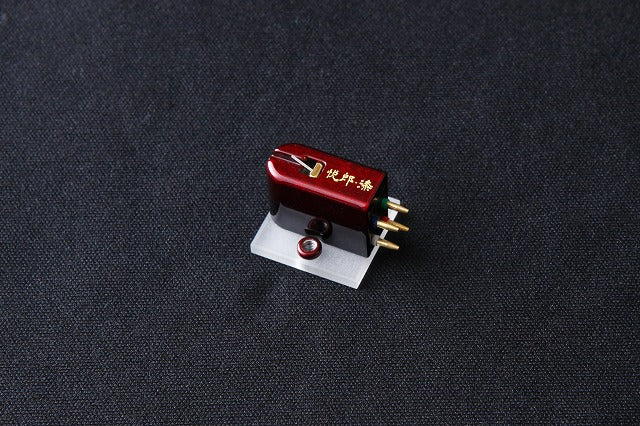

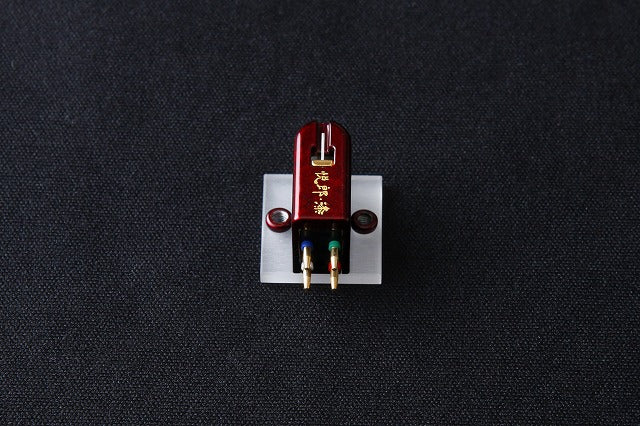

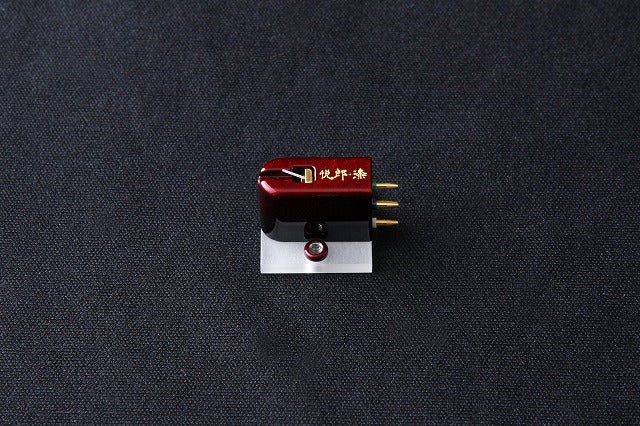

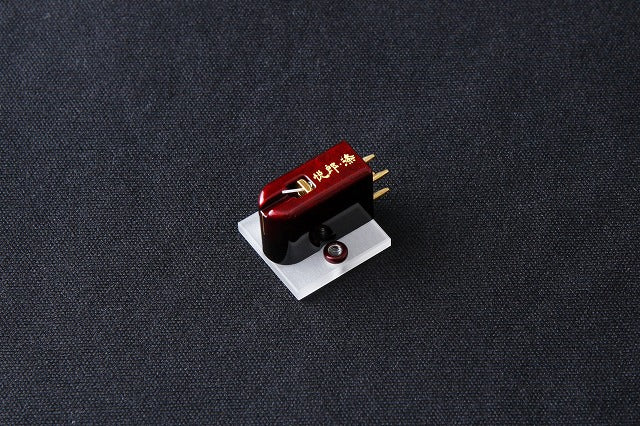

The Bordeaux features a stylus with an 80μm Super micro line diamond chip that precisely follows ultra-fine grooves to reproduce sound with authentic accuracy. Its cantilever is crafted from sapphire, chosen for its excellent sound transmission and durability, enabling rapid vibration transfer with minimal distortion. The base section also incorporates a 2.5mm-thick pure sapphire plate, ensuring seamless vibration transmission and minimizing signal loss. The magnetic circuit combines electromagnetic soft iron with a samarium cobalt magnet, delivering balanced and rich sound. Gold-plated terminal pins enhance connectivity, while the handcrafted housing boasts a traditional Japanese urushi lacquer on Extra-super duralumin (AL7505), providing both structural strength and a refined, artistic finish.
Specs |
|
Type | Moving coil |
Frequency response | 15-50,000Hz |
Output voltage | 0.25mV/1kHz |
Output balance | <0.5dB/1kHz |
Channel separation | 33dB/1kHz |
Tracking weight | 2gr |
Impedance | 3Ω/1kHz |
Trackability | 70μm/2gr |
Stylus shape | 80μm microline diamond |
Cantilever | 0.4φsapphire pipe |
Cartridge base | 2.5mm Sapphire Plate |
Cartridge housing | Extra super duralumin(A7075) |
Housing processing | Special Grade Urushi Handmade |
Terminal pin | Gold plated |
Cartridge weight | 9.0 grams |

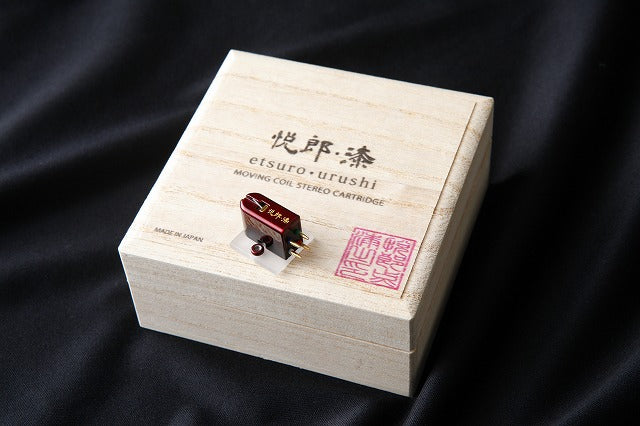

Content | Warranty card, Instruction manual (Dimensions, specifications), Stylus brush, 2 mounting screws |
Box Material | Paulownia aulownia |
