BHA-1
Tax excluded.

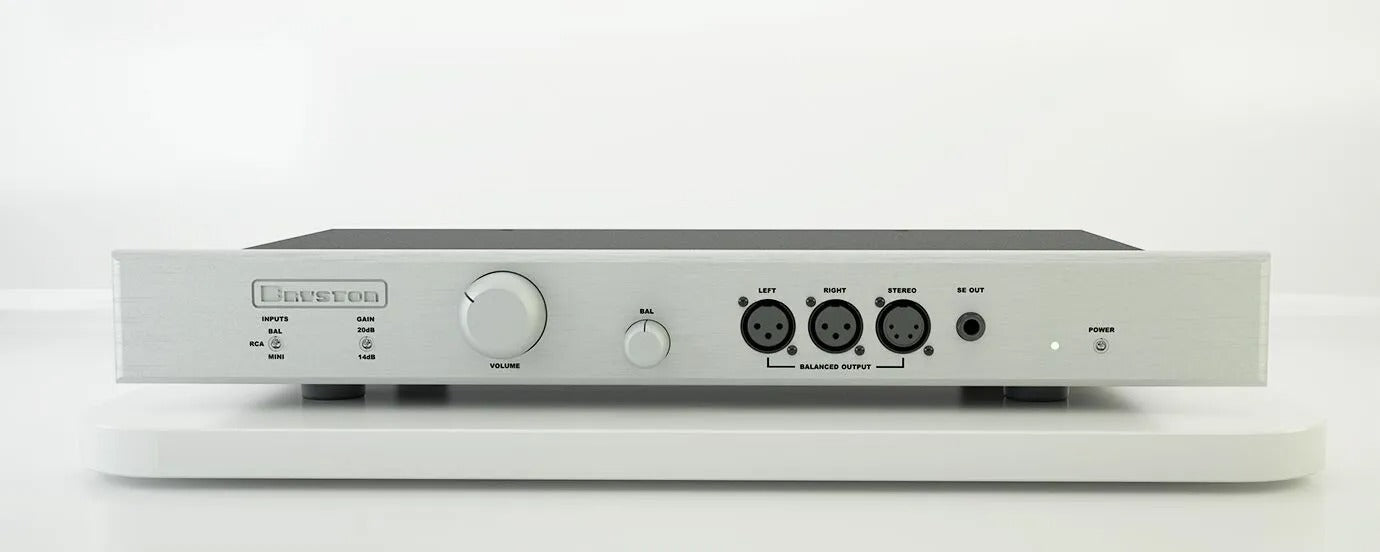

Building on its legacy of unparalleled audio performance and functionality, the Bryston BHA-1 balanced headphone amplifier provides the highest quality listening experience for a wide range of headphone models. Functioning as a compact power amplifier, it incorporates the same sturdy design principles that have established Bryston's full-sized amplifiers as industry standards worldwide. Distinctive to the BHA-1 are six class A, fully discrete operational amplifiers delivering up to 2 watts of power, ensuring an exceptional dynamic range. It includes both balanced and single-ended outputs for conventional headphones, along with rear-mounted XLR outputs that allow it to serve as a premium analog preamplifier. The BHA-1 enables headphones to perform at their full potential.
Features
- 3 stereo inputs: RCA, XLR, and 3.5mm TRS
- Fully Class A discrete operational amplifiers.
- Low distortion, high power output
- Balanced output
- Switchable gain
- Fully convection cooled means no noisy fans
- Machined and anodized aluminum enclosure and dress panel
- Legendary Bryston 20 Year Warranty
Options
- Silver or black faceplate
- 17” or 19” faceplate (non-rack mountable)
- 17" compatible with rack mount ears
- Locking mechanisms on Balanced XLR connectors
Specs |
|
Dimensions | Inches: 17 or 19 W x 2.71 H x 11.10 D |
Weight | 11.7 lbs | 5.3 kg |
Frequency Response: | 20Hz - 20kHz |
THD+N (20Hz-20kHz @ Rated Power): | <0.005% |
Power Output (per channel): | 2W @ 32Ω |
Input Impedance: | Unbalanced 10KΩ |
Balanced +15kΩ/-5kΩ | |
Sensitivity: |
HI (approx 20 dB) setting: 70mV in = 100 mW out into 50 Ω (500mV in = 5V out), LO (approx 14 dB) setting: 140mV in = 100 mW out into 50 Ω (500mV in = 2.5V out) |
